LRES1014PF-2QSFP28
Tuotenro
LRES1014PF-2QSFP28
Toimitusaika 21-30pv

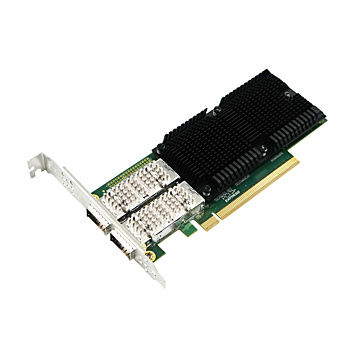

PCIe x16 Dual-port 100G QSFP+ Ethernet Network Adapter(E810)
- Intel master chip scheme
- PCI Express v4.0 x16
- iWARP and RoCEv2 Remote Direct Memory Access (RDMA)
- Intel Ethernet Adaptive Virtual Function
- Enhanced server virtualizations: 256 VFs, 768 VSIs
- IEEE 1588 Precision Time Protocol with per-packet time stamping
| System | |
| Controller | Intel chip (E810) |
| Connector | QSFP28 |
| Copper type | |
| Bus Type | PCIex16 Gen3 |
| Data rate | 100GbE |
| Cooling method | Passive Heatsink |
| PoE Power/port | |
| Physical Characteristics | |
| Height | Half Height /Full Height |
| Protocol Support | |
| IEEE802.3bj 100GBASE Ethernet IEEE802.3cd 50Gb/s IEEE802.3ae 10GBase-X IEEE802.3x Full Duplex and flow control IEEE802.3az IEEE802.3AS IEEE802.1Q VLAN IEEE802.1Qaz IEEE802.1Qbb IEEE802.1x IEEE802.1bd IEEE 1588 |
|
| iSCSI | Yes |
| WoL | No |
| Jumbo Frames | Yes |
| DPDK | Yes |
| PXE | Yes |
| FcoE | No |
| RDMA | Yes |
| Network virtualization | SR-IOV, VxLAN, GENEVE, GRE |
| System Support | |
| Windows Server 2016 R2/2019 | |
| VreeBSD 11.x or later | |
| Ubuntu 16.x or later | |
| Vmware ESX/ESXi 4.x or later | |
| Environmental | |
| Operating Temperature | |
| Card Slot Interface | |
| PCIe | PCIex16 Gen3 |
| Connection | QSFP28 Fiber slot |
|---|---|
| Data Interface | PCIEx16 |
