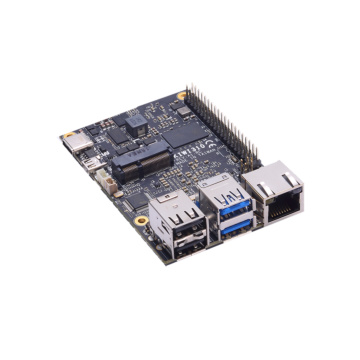

KIWI310
Tuotenro
KIWI310-J2C-H
Varastossa
345,13 EUR 225,90 EUR 180,00 EUR
- Intel® Celeron® processor N3350
- 4GB On-board LPDDR4
- 1 GbE LAN
- On-board eMMC 64GB
- M.2 Key E
| Form Factor | |
| Form Factor | 1.8” SBC |
| System | |
| Processor | Intel® Celeron® processor N3350 |
| Security Hardware | |
| Chipset | SoC |
| Storage | 64GB eMMC |
| Storage Support | |
| Memory | 4GB On-board LPDDR4 |
| Graphics | |
| I/O Ports | |
| USB 2.0 | 2 x USB 2.0 |
| USB 3.0 | 2 x USB 3.0 |
| USB 3.1 | |
| Serial | |
| Video | 1 x Micro HDMI |
| Ethernet | 1 x 10/100/1000 Mbps (Realtek RTL8111) |
| Other Ports | |
| Expansion | |
| Expansion Interface | 1 x M.2 Key E (USB2.0, PCIe) in 2230 40-pin GPIO includes UART, I2C, SPI, GPIO |
| Operating System | |
| Operating System | |
| Power | |
| DC Input / Source Voltage | USB PD (supports USB Type C PD 2.0, 9V/3A, 12V/3A, 15V/3A, 20V/3A) |
| Power Requirements | Intel® Celeron® N3350 @ 1.1 GHz 8GB LPDDR4 USB Type C PD 2.0, 9V/3A, 12V/3A, 15V/3A, 20V/3A |
| Operating Temperature | |
| Operating Temperature | Operating Temperature 0°C to 60°C |
| Humidity Range | 10% ~ 95%, non-condensing |
| Dimensions / Weight | |
| Weight (kg) | 0.5kg |
| Dimensions | 85 x 56 mm |
| Certification | |
| Certification | CE |
| Valmistaja / Brand | Axiomtek |
|---|---|
| Socket | SoC |
| Form Factor | 1.8" Embedded |
