IRFD-210
Tuotenro
irfd-210
Toimitusaika 8-16pv

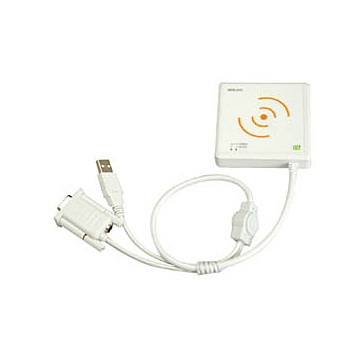

RFID READER AND ANTENNA,LF 125KHZ EM4095,USB/UR INTERFACE
Ominaisuudet
*125KHz radio frequency desktop RFID reading module
*Keyboard event support (USB only)
*Supports standard protocol ISO-11784/11785 for vicinity card applications reads multiple tags simultaneously
*Tag compatibility : EM4305/4450
*Reader to reader anti-collision
*Single power supply and low power consumption
*Various interfaces to main system
*115.2 Kbps maximum serial communication speeds (with adapter)
*USB
*Keyboard event support (USB only)
*Supports standard protocol ISO-11784/11785 for vicinity card applications reads multiple tags simultaneously
*Tag compatibility : EM4305/4450
*Reader to reader anti-collision
*Single power supply and low power consumption
*Various interfaces to main system
*115.2 Kbps maximum serial communication speeds (with adapter)
*USB
Pakkaus sisältää
1 * IRFD-210
1 * Utility CD inculding SDK,utilities,and technical documents
1 * 5VDC 12W power adapter with DC plug in females;100-240VAC input
1 * USB/RS232 Y cable
1 * Utility CD inculding SDK,utilities,and technical documents
1 * 5VDC 12W power adapter with DC plug in females;100-240VAC input
1 * USB/RS232 Y cable
Spesifikaatiot
Operating frequency: 125 KHz
UART: RS-232
USB: USB 2.0 full speed with 3.3/5V logic levels
RFID Protocol: ISO 11784,ISO 11785(EM4305/EM4450 R/W)
Control interface: USB 2.0
RFID ASIC: EM4095
Processor: AT90USB162 and ATMEGA64
Dimensions: 25mm x 53mm x 7mm
Power consumption: 5V @150mA
Storage temperature: -10℃~ 70℃
Operating temperature: 0℃~ 50℃
Operating humidity: 10%~85% RH
Driver support: Windows XP/XPE
UART: RS-232
USB: USB 2.0 full speed with 3.3/5V logic levels
RFID Protocol: ISO 11784,ISO 11785(EM4305/EM4450 R/W)
Control interface: USB 2.0
RFID ASIC: EM4095
Processor: AT90USB162 and ATMEGA64
Dimensions: 25mm x 53mm x 7mm
Power consumption: 5V @150mA
Storage temperature: -10℃~ 70℃
Operating temperature: 0℃~ 50℃
Operating humidity: 10%~85% RH
Driver support: Windows XP/XPE
