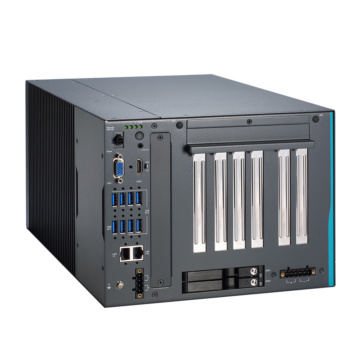

    Industrial System with LGA1200 Socket Intel® Xeon® or 10th Gen Core™ i7/i5/i3 Processor, Intel® W480E, Front-access I/O, and PCIe Slots

    • LGA1200 Intel® Xeon® or 10th gen Core™ i7/i5/i3 processor, up to 80W
    • Intel® W480E chipset
    • Supports dual NVIDIA® GeForce RTX 3090 GPU cards
    • Supports M.2 Key B slot for 5G wireless connection
    • Supports M.2 Key E slot for Wi-Fi connection
    • Supports RAID 0, 1, 5
    • Supports power-on delay function
    • Supports TPM 2.0
    System
    Processor Intel® Xeon® and 10th Gen Intel® Core™ i7/i5/i3 processors (Cometlake-S), up to 80W
    CPU Performance
    Security Hardware TPM2.0
    Chipset Intel® W480E
    Storage 2 x SSD/HDD drive bay (7/9.5mm height, external)
    1 x SSD/HDD drive bay (optional, 7/9.5/15mm height, internal) (supports RAID 0,1)
    1 x M.2 Key M 2280 socket (PCIe Gen3 x4) for NVMe SSD
    Memory 4 x DDR4-2933 MTs ECC or non-ECC U-DIMM socket, up to 128GB
    Graphics
    I/O Ports
    USB 2.0 1 x USB2.0 (internal)
    USB 3.2 6 x USB 3.2 Gen2 (10G)
    2 x USB 3.2 Gen1
    Serial
    Video 1 x VGA 1920 x 1200 resolution
    1 x HDMI 4096 x 2304 @30Hz
    Ethernet 1 x 10/100/1000/2500 Mbps Ethernet - Intel® i225-LM
    1 x 10/100/1000 Mbps Ethernet - Intel® i211-AT
    More LAN ports available from extension I/O modules
    Other Ports 1 x Line-out
    1 x Switch for power On/Off (ATX)
    1 x Remote switch
    Expansion
    Expansion Interface 1 x PCIe x4 slot
    1 x PCIe x8 slot (x4 signal)
    2 x PCIe x16 slot
    2 x Blank slot opening (space for GPU card)
    1 x Full-size PCI Express Mini Card slot with SIM slot (USB & PCIe interface)
    1 x M.2 Key E 2234 socket
    1 x M.2 Key B 3042/3050 socket with SIM slot
    Operating System
    Operating System Windows® 10, Linux
    Power
    DC Input / Source Voltage Power Input Voltage 24VDC
    -230V AC-DC power adapter
    Operating Temperature
    Operating Temperature -10°C ~ +60°C with W.T. SSD
    Humidity Range 10% ~ 95%, non-condensing
    Cooling System / Thermal Solution
    Thermal Solution Passive - Fanless
    Dimensions / Weight
    Weight (kg) 9 kg
    Dimensions 255 x 192 x 360 mm
    Enclosure
    Bezel
    Material Aluminum / Steel
    Mounting Desk / Wall mounting
    Peripherals & Devices
    Accessories Optional Modules
    Extra Features
    Certification
    Certification CE, FCC certified
    Lisätietoja
    JäähdytysFanless
    CPU FamilyComet Lake (10th Gen Core i3/i5i7/i9)
    Operating TempWide Temp -20..70C
