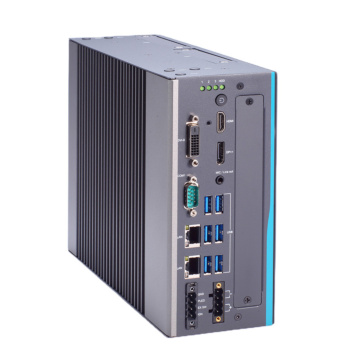

    Fanless Industrial System with LGA1700 Socket 12th Gen Intel® Core™ i7/i5/i3 or Celeron® Processor, Intel® Q670E, and Front-access I/O

    • Fanless embedded system
    • Optional extension system I/O window
    • Optional 5G network (Q670E)
    • USB power on/off control via BIOS setting
    • Intelligent power management - ACC ignition
    • EN 61000-6-2 certified
    • Supports Intel® RST
    System
    Processor 12th gen Intel® Core™ processor, up to 65W
    CPU Performance
    Security Hardware TPM2.0
    Chipset Intel® Q670E
    Storage 2 x 2.5" HDD/SSD with Intel® RST supported (7/9.5/15 mm height)
    1 x M.2 Key M 2280 socket (PCIe x4 Gen4)
    Memory 2 x DDR5 4800/4000 SO-DIMM, up to 64GB
    Graphics
    I/O Ports
    USB 2.0 1 x USB 2.0 (Q670E, internal,up to 30mm) 180D type A
    USB 3.2 6 x USB 3.2 Gen2x1 (10G) type A
    Serial 1 x RS-232/422/485 (default RS-232)
    More COM ports available from extension I/O modules
    Video 1 x DisplayPort++ with 4096 x 2304 resolution supported
    1 x HDMI with 4096 x 2304 resolution supported
    1 x DVI-D with 1920 x 1200 resolution supported
    Ethernet 1 x 2.5GbE LAN (Intel® I226-LM)
    1 x RJ-45 GbE LAN (Intel® I219-LM) with Intel® AMT
    More LAN ports available from extension I/O modules
    Other Ports 1 x Switch for power On/Off (ATX)
    1 x Remote switch
    1 x 3-pin terminal block
    1 x AT/ATX selectable switch
    Expansion
    Expansion Interface 1 x Full-size PCI Express Mini Card slot with SIM slot (USB & PCIe interface)
    1 x M.2 Key E 2230 socket
    1 x M.2 Key B 3042/3050 socket with SIM slot
    Operating System
    Operating System Windows® 10, Linux
    Power
    DC Input / Source Voltage Input: 18 to 36 VDC
    1 x Switch for power on/off with LED (default ATX)
    1 x 4-pin terminal block (5.08 mm) for DC input
    1 x 4-pin terminal block (5.08 mm) for ignition control, remote power and remote LED
    Operating Temperature
    Operating Temperature -20°C ~ +70°C with W.T. SSD
    Humidity Range 10% ~ 90%, non-condensing
    Cooling System / Thermal Solution
    Thermal Solution Passive - Fanless
    Dimensions / Weight
    Weight (kg) 4.5 kg
    Dimensions 84 x 192 x 260 mm
    Enclosure
    Bezel
    Material Aluminum / Steel
    Mounting Desk / Wall mounting
    Peripherals & Devices
    Accessories Optional Modules
    Extra Features
    Certification
    Certification CE (EN 61000-6-4/EN 61000-6-2)/FCC
    Lisätietoja
    JäähdytysFanless
    CPU FamilyAlder Lake (12th Gen Core i3/i5i7/i9)
    Operating TempWide Temp -20..70C
