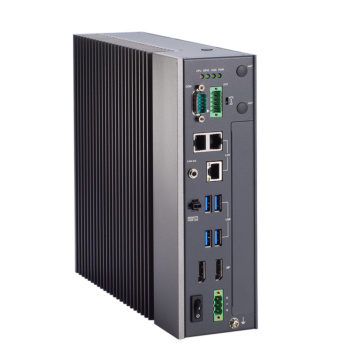

IPC950
Tuotenro
IPC950
Toimitusaika 21-30pv
0,00 EUR
- 11th Gen Intel® Core® i7/i5/i3 processor (Tiger Lake U), 15W
- Flexible I/O module for further expansion
- M.2 Key E socket for wireless connection
- 2 DisplayPort
- Supports TPM 2.0
- Supports Intel® iAMT
- Optional 1 PCIe x4 slot expansion kit
- Optional DIN-rail, bookshelf and wall mount
| System | |
| Processor | Intel® Core® processor (Tiger Lake U), 15W |
| CPU Performance | -i7-1185G7E -i5-1145G7E -i3-1115G4E |
| Security Hardware | |
| Chipset | SoC integrated |
| Storage | 1 x 2.5" HDD/SSD bay (7/9.5 mm height) 1 x M.2 Key B+M 2280 socket (SATA interface) for SSD |
| Storage Support | |
| Memory | 2 x DDR4-3200 MT/s un-buffered SO-DIMM, up to 64GB |
| Graphics | |
| I/O Ports | |
| USB 2.0 | 1 x USB2.0 |
| USB 3.0 | 4x USB 3.1 (10G) |
| Serial | 1 x RS-232/422/485 (default RS-232, BIOS selection) |
| Video | 2 x DP++ 1.2 4K supports resolution up to 4096*2160 @60HZ |
| Ethernet | 1 x 10/100/1000/2500 Mbps Ethernet - Intel® i225-LM 2 x 10/100/1000 Mbps Ethernet - Intel® i211-AT More LAN ports available from extension I/O modules |
| Other Ports | 1 x Switch for power On/Off (ATX) 1 x Remote switch 1 x 3-pin terminal block 1 x AT/ATX selectable switch |
| Expansion | |
| Expansion Interface | 1 x M.2 Key E 2230 socket 1 x SIM slot 1 x Full-size PCI Express Mini Card slot (USB & PCIe interface) 1 PCIe x4 slot |
| Operating System | |
| Operating System | Windows® 10, Linux |
| Power | |
| DC Input / Source Voltage | Power Input Voltage 24VDC -230V AC-DC power adapter |
| Operating Temperature | |
| Operating Temperature | -20°C ~ +50°C with W.T. SSD |
| Humidity Range | 10% ~ 95%, non-condensing |
| Cooling System / Thermal Solution | |
| Thermal Solution | Passive - Fanless |
| Dimensions / Weight | |
| Weight (kg) | 6 kg |
| Dimensions | 69.5 x 225 x 230 mm |
| Enclosure | |
| Bezel | |
| Material | Aluminum / Steel |
| Mounting | Desk / Wall mounting |
| Peripherals & Devices | |
| Accessories | Optional Modules |
| Extra Features | |
| Certification | |
| Certification | CE, FCC certified |
| Jäähdytys | Fanless |
|---|---|
| CPU Family | Tiger Lake (11th Gen Core i3/i5/7) Mobile |
| Operating Temp | Normal Temp 0..70C |
