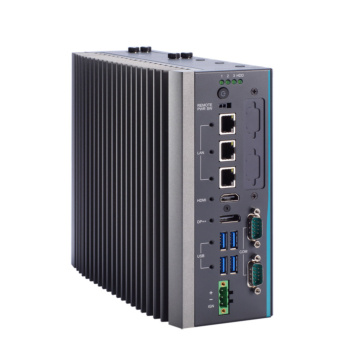

IPC920-H
Tuotenro
IPC920-H
Toimitusaika 21-30pv
0,00 EUR
- Fanless embedded system
- Intelligent power management Ignition, USB power on/off control
- EN 61000-6-2 certified
- Optional DIN-rail, bookshelf and wall mount kits
- Optional PCIEx16 -slot
| System | |
| Processor | LGA1700 12th gen Intel® Core™ i7/i5/i3 or Celeron® processor (TDP up to 65W) |
| Security Hardware | TPM2.0 |
| Chipset | Intel H610 |
| Storage | 2 x 2.5" HDD/SSD with Intel® RST supported (7/9.5 mm
height) 1 x M.2 Key M 2280 socket (PCIe x4 Gen4 |
| Memory | 2 x DDR5 4800/4000 non-ECC SO-DIMM, up to 64GB |
| Audio | n/a |
| Graphics | 1 x DisplayPort++ with 4096 x 2160 resolution
supported 1 x HDMI with 4096 x 2160 resolution supported |
| I/O Ports | |
| USB 2.0 | 1 x USB2.0 (internal) |
| USB 3.2 | 4x USB 3.2 Gen 1 |
| Serial | 2 x RS-232 (4-wire)/422/485 (default RS-232), DB9 (By BIOS Selection) |
| Video | 1 x HDMI 1 x DisplayPort |
| Ethernet | 2 x 2500/1000/100/10 Mbps Ethernet (Intel® I225-V) 1 x 1000/100/10 Mbps Ethernet (Intel® I219-V) |
| Other Ports | 1 x 3-pin terminal block for DC input, ignition
control, AT/ATX mode by BIOS setting 1 x Switch w/LED for power on/off control (default ATX) 1 x Remote power switch |
| Expansion | |
| Expansion Interface | 1 x Full-size PCI Express Mini Card slot (USB &
PCIe interface) with SIM slot 1 x M.2 Key E 2230 socket 1 x PCIe x16 Gen3 slot (E-model) |
| Operating System | |
| Operating System | Windows® 10, Windows 11, LINUX |
| Power | |
| DC Input / Source Voltage | 18-36V DC |
| Operating Temperature | |
| Operating Temperature | -20°C ~ +70°C with wide-temp memory & ssd |
| Humidity Range | 10% ~ 90%, non-condensing |
| Cooling System / Thermal Solution | |
| Thermal Solution | |
| Dimensions / Weight | |
| Weight (kg) | 3 kg |
| Dimensions | 192 x 230 x 84 mm With PCIex16 slot : 192 x 230 x119 |
| Enclosure | |
| Bezel | |
| Material | Aluminum / Steel |
| Mounting | Desk / Wall mounting /DIN-Rail |
| Peripherals & Devices | |
| Accessories | |
| Extra Features | |
| Certification | |
| Certification | CE (EN 61000-6-4/EN 61000-6-2), FCC |
| Jäähdytys | Fanless |
|---|---|
| CPU Family | Alder Lake (12th Gen Core i3/i5i7/i9) |
| Operating Temp | Wide Temp -20..70C |
