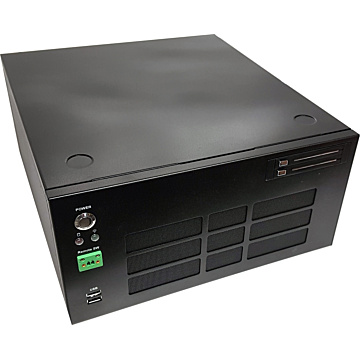

IPC-M750 Teollisuus PC
Tuotenro
IPC-M750
Toimitusaika 14-22pv
1562,48 EUR 1245,00 EUR
Economical & Compact Industrial PC, 12th Gen Core-i CPU, 600W Power supply, for Multipurpose computing
- 12th Gen Core-i CPU, i5/i7
- External 2x2.5" HDD/SSD bay
- Two 80mm front fan, with filter
- 600W power supply, support high performance GPU card
- Can install long-length graphic card (315mm)
- Supports Vertical & Horizontal mounting
| System | |
| Processor | LGA1200 socket 12th gen Intel® Core™ i7/i5/i3 processor (up to 65W) |
| Security Hardware | Support TPM2.0 (optional module) |
| Chipset | Intel® Z670 /Q670 |
| Storage | 2 x 2.5” SATA HDD/SSD Bay (Removable) (Support RAID
0/1) 1 x 3.5” SATA HDD/SSD Bay 1 x M.2 for 2280 NVMe(PCIe4.0) SSD |
| Memory | 4 x 288-pin DDR4-3200, up to 128GB |
| Graphics | Intel® Graphics supports dual independent display |
| I/O Ports | |
| USB 2.0 | 4 x USB2.0 |
| USB 3.2 | 4 x USB 3.2 |
| Serial | 2x RS-232/422/485 (pin header) 4x RS-232 (2 rear, 2 pin header) |
| Video | 1 x HDMI 2.0 1 x DVI-I (VGA) |
| Ethernet | 1x GbE LAN , RJ-45 1x 2.5GbE LAN , RJ-45 |
| Other Ports | GPIO 8-bit MIC-in/Line-out/Line-In 1 x PS/2 keyboard and mouse 1 x LPT |
| Expansion | |
| Expansion Interface | 1 x PCIe x16 slot (Gen5) 3 x PCIe x4 slot (Gen4) 2 x PCIe x4 slot (Gen3) 1 x PCIe x1 slot (Gen3) |
| Operating System | |
| Operating System | Windows® 10, Linux |
| Power | |
| DC Input / Source Voltage | 230V AC, 600W ATX PSU |
| Operating Temperature | |
| Operating Temperature | 0°C ~ +55°C |
| Humidity Range | 10% ~ 95%, non-condensing |
| Cooling System / Thermal Solution | |
| Thermal Solution | FAN, Pressurized cabin with air filter 2x 80mm Chassis FAN |
| Dimensions / Weight | |
| Weight (kg) | 7 kg |
| Dimensions | 323 x 360 x 155 mm |
| Enclosure | |
| Bezel | |
| Material | Steel |
| Mounting | Desk / Wall mounting |
| Certification | |
| Certification | CE |
| Jäähdytys | Kotelo tuuletin |
|---|
