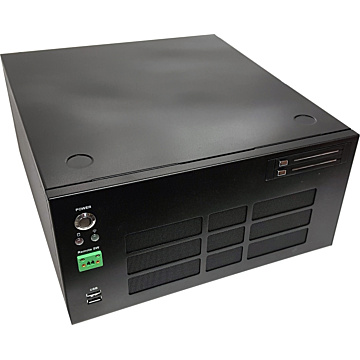

IPC-M540 Teollisuus PC
Tuotenro
IPC-M540
Toimitusaika 14-22pv
1292,66 EUR 1030,00 EUR
Economical & Compact Industrial PC, 10th Gen Core-i CPU, 600W Power supply, for EDGE AI/GPU computing
- 10th Gen Core-i CPU, i5/i7/i9
- External 2x2.5" HDD/SSD bay
- Two 80mm front fan, with filter
- 600W power supply, support high performance GPU card
- Can install long-length graphic card (315mm)
- Supports Vertical & Horizontal mounting
| System | |
| Processor | FCLGA1200 10th gen Intel® Core™ i9/i7/i5/i3, Intel® Pentium® processors Gold/Celeron® processors (up to 65W) |
| Security Hardware | |
| Chipset | Intel® H410 |
| Storage | 2x 2.5” SATA HDD/SSD Bay (Removable) |
| Storage Support | |
| Memory | 2 x 260-pin DDR4-2933/2666/2400 SO-DIMM, up to 64GB |
| Graphics | Intel® Graphics supports triple independent display 1 x DisplayPort++ 1 x HDMI 2.0 1 x VGA |
| I/O Ports | |
| USB 2.0 | 5 x USB2.0 |
| USB 3.2 | 2x USB 3.0 Gen1 |
| Serial | 1x RS-232/422/485 1x RS-232 4x RS-232 (pin header) |
| Video | 1 x VGA 1 x DVI-D 1 x HDMI 1 x DisplayPort |
| Ethernet | 2x GbE LAN , RJ-45 |
| Other Ports | DIO 8-channel MIC-in/Line-out |
| Expansion | |
| Expansion Interface |
1 x PCIEx16 |
| Operating System | |
| Operating System | Windows® 10, Linux |
| Power | |
| DC Input / Source Voltage | 230V AC, 600W ATX PSU AT mode supported |
| Operating Temperature | |
| Operating Temperature | 0°C ~ +55°C |
| Humidity Range | 10% ~ 95%, non-condensing |
| Cooling System / Thermal Solution | |
| Thermal Solution | FAN, Pressurized cabin with air filter 2x 80mm Chassis FAN |
| Dimensions / Weight | |
| Weight (kg) | 7 kg |
| Dimensions | 323 x 360 x 155 mm |
| Enclosure | |
| Bezel | |
| Material | Steel |
| Mounting | Desk / Wall mounting |
| Certification | |
| Certification | CE |
| Jäähdytys | Kotelo tuuletin |
|---|
