IPC-K32
Tuotenro
IPC-K32
Varastossa
690,26 EUR 550,00 EUR

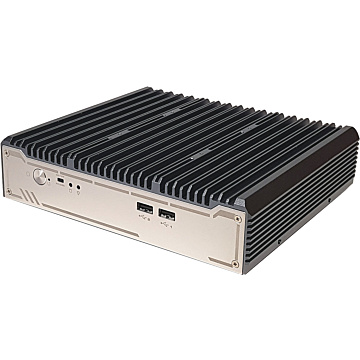

Fanless Embedded System, Intel 11th Gen i5-1135G7 CPU, HDMI, VGA, 1x GbE LAN, 6x USB, 2xCOM
- 11th Gen Core-i CPU, i5-1135G7 Ultra Low Voltage
- 2.5" SATA SSD / mSATA
- HDMI & VGA display
- 4x USB3.0 & 2x USB2.0
- 1x 2.5GbE LAN
| System | |
| Processor | 11th Gen Intel® Core™ i5-1135G7 2.4Ghz processor (28W) |
| Security Hardware | |
| Chipset | SoC |
| Storage | 1 x 2.5” SATA SSD 1 x mSATA |
| Memory | 2 x DDR4-2400 SO-DIMM, up to 64GB |
| Graphics | Integrated Intel® Iris® Xe Graphics |
| I/O Ports | |
| USB 2.0 | 2x USB2.0 |
| USB 3.0 | 4 x USB 3.0 |
| Serial | 2 x RS-232 |
| Video | 1 x HDMI 1.4 1 x VGA |
| Ethernet | 1 x 2.5 GbE (Intel® i225V) |
| Other Ports | 1 x Audio 1 x Power button 4 x Antenna opening |
| Expansion | |
| Expansion Interface | 1 x M.2 Key E 2230 socket (for Wi-Fi 6E) 1 x M.2 Key B 2242/2252 socket (for 5G) 1 x Internal SIM slot for PCIe Mini Card slot |
| Operating System | |
| Operating System | Win 10, Win 11, Linux |
| Power | |
| DC Input / Source Voltage | 12V DC input 230V AC-DC adapter included |
| Operating Temperature | |
| Operating Temperature | 0C..50C with normal temp SSD -10C..50 with wide temp SSD |
| Humidity Range | 10% ~ 90%, non-condensing |
| Cooling System / Thermal Solution | |
| Thermal Solution | Passive – Fanless |
| Dimensions / Weight | |
| Weight (kg) | 2.6 kg |
| Dimensions | 219 x 195 x 51 mm |
| Enclosure | |
| Bezel | |
| Material | Aluminum / Steel |
| Mounting | Desk / Wall mounting kit |
| Peripherals & Devices | |
| Accessories | |
| Extra Features | |
| Certification | |
| Certification | CE, FCC Class A |
| Jäähdytys | Fanless |
|---|---|
| CPU Family | Tiger Lake (11th Gen Core i3/i5/7) Mobile |
| Operating Temp | Normal Temp 0..60C |
