IPC-617
Tuotenro
IPC-617
Varastossa
0,00 EUR

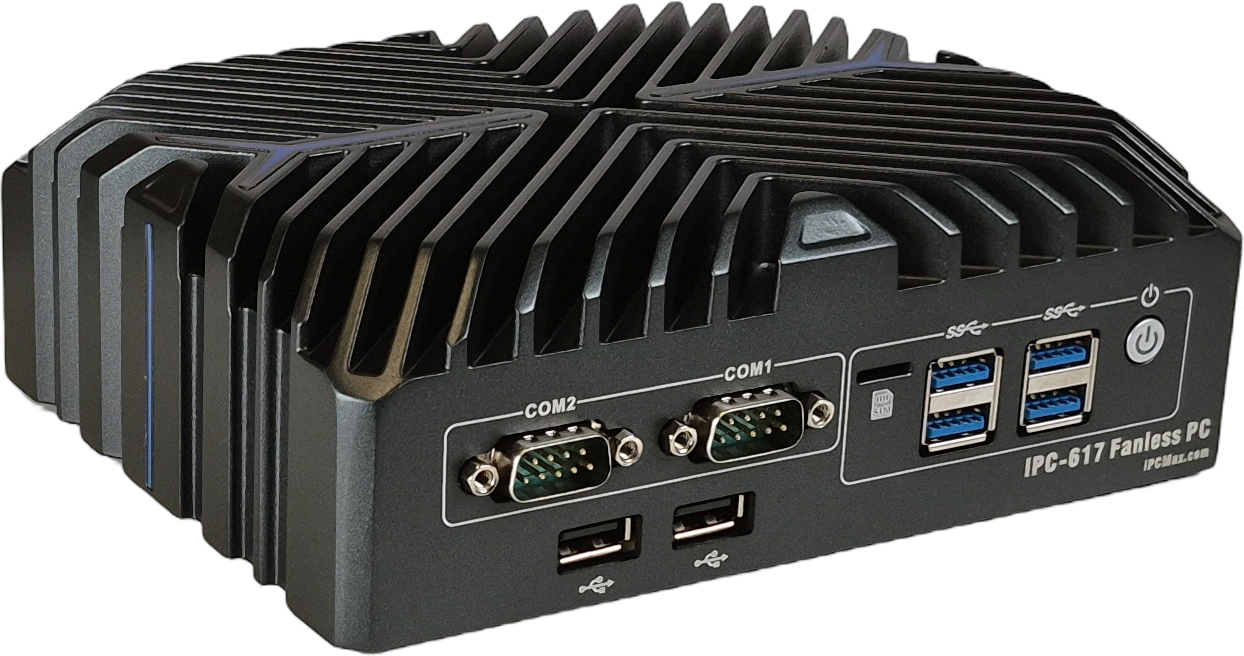

Fanless Embedded System, Intel 14th Gen Core 5 Ultra CPU, 3x HDMI, Type-C, 3x 2.5GbE LAN, 6x USB, 2x COM
- 14th Gen Core Ultra5 CPU 125U Ultra Low Voltage
- 2.5" SATA SSD bay
- Support M.2 NVME SSD
- Triple HDMI display & Type-C

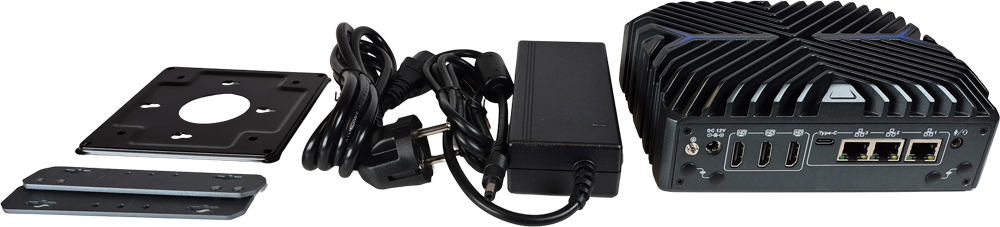

- 90W power adapter for more power hungry applications
- 2x USB3.1, 4x USB2.0
- 3x 2.5GbE LAN, RJ-45
- 2x COM RS-232/485
| System | |
| Processor | Intel® Core™ Ultra i5 125U processor (12-Core, 4.3 Ghz) (15W) |
| CPU Performance | 2x Performance-cores , 8x Efficient-cores, 2x Low Power Efficient-cores |
| Chipset | SoC |
| Storage | 1 x M.2 2280 slot (NVME) 1 x 2.5” HDD/SDD bay |
| Graphics | Intel Graphics |
| Memory | 1x DDR5 262-pin SO-DIMM socket, support up to 32 GB |
| I/O Ports | |
| USB 2.0 | 4x USB 2.0 |
| USB 3.0 | 2x USB 3.1 |
| Serial | 2x RS-232 / 485 |
| Video | 3 x HDMI , 1x Type-C Support 4 displays (max 4096x2160 ) |
| Ethernet | 3 x RJ45 LAN 2.5GbE (Intel i226-V 2.5G) |
| Other Ports | Audio |
| Operating System | |
| Operating System | Windows 11, Windows 10 IoT, Linux |
| Power | |
| Source Voltage | 12V DC 230V AC adapter |
| Power Management | |
| Expansion Slots | |
| Expansion | 1 x M.2 3052 B-key slot (USB3.0), (support 4G/5G) 1 x SIM card slot 1 x M.2 2230 E-key slot (support wifi, BT) |
| Operating Temperature | |
| Operating Temperature | 0ºC to 40ºC with normal temp hdd -20ºC to 50ºC with wide-temp ssd |
| Humidity Range | 10% to 95% non-condensing |
| Cooling System / Thermal Solution | |
| Thermal Solution | Fanless |
| Dimensions / Weight | |
| Weight (kg) | 1.2 kg |
| Dimensions | 170 x 140 x 58mm |
| Certification | |
| Certification | CE / FCC |
| Jäähdytys | Fanless |
|---|---|
| Operating Temp | Wide Temp -10..50C |
