IPC-613
Tuotenro
IPC-613-i5
Varastossa
0,00 EUR

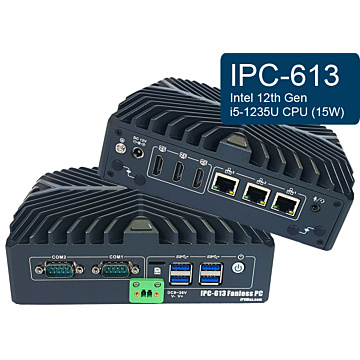

Fanless Embedded System, Intel 12th Gen i5 CPU, 3x HDMI, 3x 2.5GbE LAN, 4x USB, 2x COM
- 12th Gen Core-i CPU, i5-1235U Ultra Low Voltage
- 2.5" SATA SSD bay
- Support M.2 NVME SSD
- Triple HDMI display
- 90W power adapter for more power hungry applications
- 4x USB3.1
- 3x 2.5GbE LAN, RJ-45
- 2x COM RS-232/485
| System | |
| Processor | Intel® Core™ i5-1235U processor (10-Core, 4.4 Ghz) |
| CPU Performance | 2x Performance-cores , 8x Efficient-cores |
| Chipset | |
| Storage | 1 x M.2 2280 slot (NVME) 1 x 2.5” HDD/SDD bay |
| Graphics | Intel UHD Graphics , 3x HDMI with 4K (max4096x2160) |
| Memory | 1x DDR5 262-pin SO-DIMM socket, support up to 32 GB |
| I/O Ports | |
| USB 2.0 | |
| USB 3.0 | 4x USB 3.1 |
| Serial | 2x RS-232/485 |
| Video | 3 x HDMI |
| Ethernet | 3 x RJ45 2.5GbE (Intel i225-V) |
| Other Ports | Audio |
| Operating System | |
| Operating System | Windows 11, Windows 10 IoT, Linux |
| Power | |
| Source Voltage | a) 9-36V Wide-Range DC b) 12V DC 230V AC-DC adapter, 90W |
| Power Management | |
| Expansion Slots | |
| Expansion | 1 x M.2 3052 B-key slot (USB3.0), (support 4G/5G) 1 x M.2 2030 E-key slot (wifi) 1 x SIM card slot |
| Operating Temperature | |
| Operating Temperature | 0ºC to 40ºC with normal temp hdd -20ºC to 50ºC with wide-temp ssd |
| Humidity Range | 10% to 95% non-condensing |
| Cooling System / Thermal Solution | |
| Thermal Solution | Fanless |
| Dimensions / Weight | |
| Weight (kg) | 1.2 kg |
| Dimensions | 170 x 140 x 58mm |
| Certification | |
| Certification | CE / FCC |
| Jäähdytys | Fanless |
|---|---|
| CPU Family | Alder Lake (12th Gen Core i3/i5i7/i9) |
| Operating Temp | Wide Temp -10..50C |
