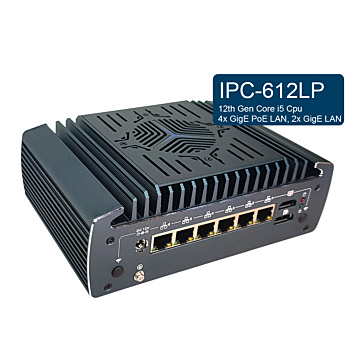

IPC-612LP
Tuotenro
IPC-612LP-i5
Varastossa
765,55 EUR 610,00 EUR
Fanless Embedded System, Intel 12th Gen i5 CPU, DP & HDMI, 6x GbE LAN (4x PoE), 6x USB, COM
- Intel® Core™ i5-1235U processor (10-Core, 4.4 Ghz)
- 2.5" SATA SSD bay
- Support M.2 NVME SSD
- HDMI & DisplayPort display
- 120W power adapter for more power hungry applications
- 3x USB3.1, 3x USB2.0
- 2x GbE LAN, RJ-45
- 4x GbE PoE Port LAN, RJ-45
- COM Port with RJ45 connector
| System | |
| Processor | Intel® Core™ i5-1235U processor (10-Core, 4.4 Ghz) |
| Chipset | SoC |
| Storage | 1 x M.2 2280 slot (NVME) 1 x 2.5” HDD/SDD bay |
| Security | TPM2.0 |
| Memory | 2x DDR4 260-pin SO-DIMM socket, support up to 64 GB |
| I/O Ports | |
| USB 2.0 | 3x USB 2.0 |
| USB 3.0 | 3x USB 3.1 |
| Serial | 1x COM (console support) |
| Video | 1x HDMI (2.1) 1x DP(1.4a) |
| Ethernet | 2 x 2.5G Ethernet LAN, RJ-45 (Intel i225-V) 4x 2.5G POE Ethernet LAN, RJ-45 (Intel i225-V) |
| Other Ports | Audio |
| Operating System | |
| Operating System | Windows 11 Pro, Windows 10 IoT, Linux |
| Power | |
| Source Voltage | 12V DC Input 230V AC adapter |
| Power Management | |
| Expansion Slots | |
| Expansion | 1 x M.2 3042 slot (for 4G / 5G) 1 x M.2 2032 slot (for wifi) 1 x SIM card slot |
| Operating Temperature | |
| Operating Temperature | 0ºC to 55ºC with normal temp hdd |
| Humidity Range | 10% to 95% non-condensing |
| Cooling System / Thermal Solution | |
| Thermal Solution | Fanless |
| Dimensions / Weight | |
| Weight (kg) | 1.5 kg |
| Dimensions | 186 x 127 x 66mm |
| Certification | |
| Certification | CE / FCC |
| Jäähdytys | Fanless |
|---|---|
| CPU Family | Comet Lake (10th Gen Core i3/i5i7/i9) |
| Operating Temp | Wide Temp -10..50C |
