IPC-409
Tuotenro
IPC-409-12V
Toimitusaika 14-22pv
407,89 EUR 325,00 EUR

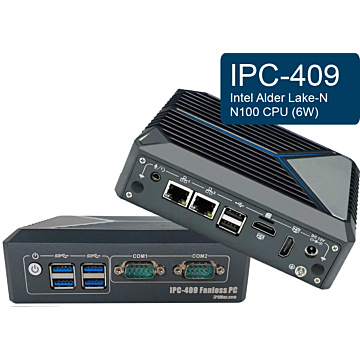

Fanless Embedded System, Intel N100 (4-Core) CPU, 2x HDMI, 2x 2.5Gb LAN, 6x USB, 2x COM
- Onboard Intel Alder Lake-N N100 CPU (6W)
- Dual monitor support (2x HDMI)
- 2x 2.5G LAN (Intel i225-V)
- 4G LTE & WLAN support
- Small size, Fanless system (150 x 127 x 48mm)
System | |
Processor | Intel® Alder Lake-N N100 processor (4-Core, 3.4 Ghz, 6W) |
Chipset | SoC |
Storage | 1 x 2.5" SATA SSD 1 x M.2 2280 slot (SATA) |
Memory | 1x DDR4 260-pin SO-DIMM socket, support up to 16 GB |
I/O Ports | |
USB 2.0 | 3x USB 2.0 |
USB 3.0 | 3x USB 3.1 |
Serial | 2x RS-232 |
Video | 2 x HDMI |
Ethernet | 2 x 2.5G Ethernet LAN, RJ-45 (Intel i225-V) |
Other Ports | Audio |
Operating System | |
Operating System | Windows 11 Pro, Windows 10 IoT, Linux |
Power | |
Source Voltage | 12V DC Input 230V AC adapter |
Power Management | |
Expansion Slots | |
Expansion | 1 x 2.5" SATA bay 1 x M.2 2280 slot (SATA) 1 x mPCIE slot (USB2.0 signal) 1 x M.2 2230 E-key slot (wifi, BT) 1 x SIM card slot |
Operating Temperature | |
Operating Temperature | 0ºC to 55ºC with normal temp hdd |
Humidity Range | 10% to 95% non-condensing |
Cooling System / Thermal Solution | |
Thermal Solution | Fanless |
Dimensions / Weight | |
Weight (kg) | 0.9 kg |
Dimensions | 150 x 127 x 48mm |
Certification | |
Certification | CE / FCC |
![](https://www.ipcmax.com/media/catalog/product/i/p/ipc-409_combine2_.jpg)
![](https://www.ipcmax.com/media/catalog/product/i/p/ipc-409_1_front_highres_2_1.jpg)
![](https://www.ipcmax.com/media/catalog/product/i/p/ipc-409_1_front_highres_4_1.jpg)
Jäähdytys | Fanless |
---|---|
CPU Family | Alder Lake (12th Gen Atom X/Intel N) |
Operating Temp | Normal Temp 0..45C |
