IPC-220-20A1

Muokkaa IPC-220-20A1
IPC-220-20A1
PCE-2132-00A1

* Pakolliset kentät

Tuote
IPC-220-20A1
IPC-220-20A1

0,00 EUR

Yhteenveto
    Tuotenro
    IPC-220-20A1
    Toimitusaika 21-30pv

    0,00 EUR

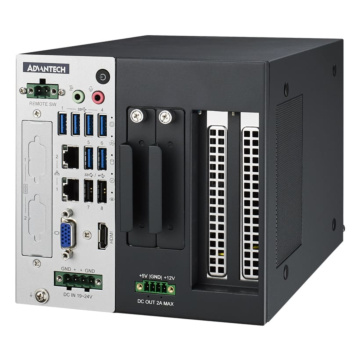

    Compact Industrial Computer System with 10th Gen Intel® Core™ i CPU Socket (LGA 1200)

    • Intel® 10th Gen Core™ i CPU socket-type (LGA1200) with Intel® Q470E/ H420E chipset
    • 3 x independent displays (third display output (DP) via optional cable)
    • 2 x GigaLan and 6 x USB3.2
    • 2 x RS-232/422/485 and 2 x RS232 serial ports
    • 1 x NVMe M.2 (Q470E Only), 2 x 2.5" HDD/SSD, and 1 x mSATA
    • 19 ~ 24 VDC input power range
    • Support Power Out 12V/5V - 2A
    • Supports Advantech i-Door
    • Versatile LED for system status and alarm
    • PCIEx16 & PCIEx4 slot
    System
    Processor Intel® 10th Gen Core™ i CPU socket-type (LGA1200)
    Security Hardware TPM2.0 (by optional module)
    Chipset PCE-2032-00A1: Q470E
    PCE-2132-00A1: H420E
    Storage 2 x 2.5" SSD/HDD Easy-Swap Bay
    1x M.2 NVMe
    PCE-2032-00A1 can support RAID 0/1/5/10
    Memory 2 x 260 pin DDR4-2666 non-ECC SO-DIMM, up to 64GB
    Audio 1 x line out
    1 x mic in
    Graphics Integrated Intel HD Graphics
    I/O Ports
    USB 2.0 4 USB2.0
    USB 3.2 6x USB 3.2
    Serial 2x RS-232/422/485
    Video 1 x HDMI 1.4
    1 x VGA
    1 x DisplayPort
    Ethernet 2 x 10/100/1000 Mbps Ethernet
    Other Ports 1 x AT/ATX quick switch
    1 x Remote switch
    Expansion
    Expansion Interface Support Advantech i-Door
    1 x PCIex16
    1 x PCIex4
    Operating System
    Operating System Windows® 10, LINUX
    Power
    DC Input / Source Voltage 19-24VDC
    Operating Temperature
    Operating Temperature 0°C ~ +45°C
    Humidity Range 10% ~ 90%, non-condensing
    Vibration 3 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis
    Shock 10G, IEC-68-2-27, half-sine wave, 11 ms duration (with SSD)
    Cooling System / Thermal Solution
    Thermal Solution
    Dimensions / Weight
    Weight (kg) 3.5 kg
    Dimensions 155 x 230 x 150 mm
    Enclosure
    Bezel
    Material Aluminum / Steel
    Mounting Desk / Wall mounting
    Peripherals & Devices
    Accessories
    Extra Features
    Certification
    Certification CE
    Lisätietoja
    JäähdytysCPU tuuletin
    CPU FamilyComet Lake (10th Gen Core i3/i5i7/i9)
    Operating TempNormal Temp 0..45C
