IMB541
Tuotenro
IMB541
Toimitusaika 21-30pv

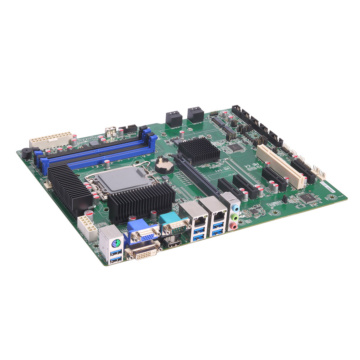

ATX Motherboard with LGA1700 Socket 12th Gen Intel® Core™ i9/i7/i5/i3, Pentium® or Celeron® Processor, Intel® Q670E, USB 3.2 Gen1x1 , SATA 3.0, GbE and 2.5GbE LAN, VGA, DVI-D, and HDMI
- LGA1700 socket 12th gen Intel® Core™ i9/i7/i5/i3, Pentium® or Celeron® processor (Alder Lake S)
- Four 288-pin DDR4-3200 non-ECC Long-DIMM, up to 128GB
- Supports triple-view with VGA, DVI-D, and HDMI connectivity
- Supports M.2 Key M 2280 and Key B 2230
- 6 USB 3.2 Gen1x1 and 2 USB 3.2 Gen1x1 (internal)
- TPM 2.0 supported (optional)
| Form Factor | |
| Form Factor | ATX |
| System | |
| Processor | LGA1700 socket 12th Gen Intel® Core™ i9/i7/i5/i3, Pentium® or Celeron® processor (up to 125W) |
| Security Hardware | TPM 2.0 (optional) |
| Chipset | Intel® Q670E |
| Storage | 4 x SATA-600 with RAID 0/1/5/10 M.2 Key M 2280 in support of PCIe x4 via CPU |
| Memory | 4 x 288-pin DDR4-3200 non-ECC Long-DIMM, up to 128GB |
| Graphics | |
| I/O Ports | |
| USB 2.0 | 2 x USB 2.0 (Type-A, rear I/O) 1 x USB 2.0 (Type-A, Internal) 4 x USB 2.0 (header, internal) |
| USB 3.1 | 6 x USB 3.2 (5Gbps, rear I/O) 2 x USB 3.2 Gen1x1 (5Gbps, internal box header) |
| Serial | 4 x RS-232 1 x RS-232/RS-485/RS-422 1 x RS-232/RS-485 |
| Video | 1 x VGA 1 x HDMI 1.4b 1 x DVI-D |
| Ethernet | 1 x 10/100/1000/2500 Mbps (Intel® I225-V) 1 x 10/100/1000 Mbps (Intel® I219-V) |
| Other Ports | DIO 8-channel programmable MIC-in/Line-in/Line-out 1 x PS/2 keyboard |
| Expansion | |
| Expansion Interface | 1 x PCIe Gen4 x16 slot 4 x Open-ended PCIe x4 slot (Gen4 signal by PCH, slot 2 supports Gen3 only) 1 x M.2 Key B 2230 (supports PCIe x1 and USB) 1 x 32-bit PCI slot, default clock is 33 MHz |
| Operating System | |
| Operating System | Windows11, Windows10 , Linux |
| Power | |
| Power Input | ATX connector |
| Power Requirements | |
| Operating Temperature | |
| Operating Temperature | Operating Temperature 0°C to 60°C |
| Humidity Range | 10% ~ 95%, non-condensing |
| Dimensions / Weight | |
| Weight (kg) | |
| Dimensions | 305mm x 244mm |
| Certification | |
| Certification | CE |
| Valmistaja / Brand | Axiomtek |
|---|---|
| Socket | LGA1700 |
| Form Factor | ATX |
