IMB521R
Tuotenro
IMB521R
Toimitusaika 14-22pv

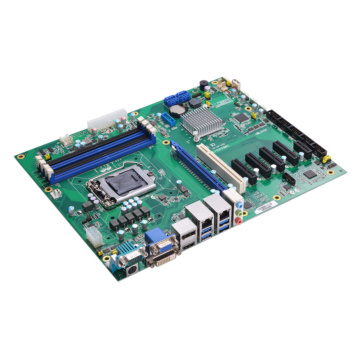

ATX Motherboard with LGA1151 Socket 8th Gen Intel® Core™, Xeon® E Processor, Intel® C246, USB 3.1 Gen2, SATA 3.0, PCI Express Mini Card Slot, VGA, DisplayPort, DVI-D, and HDMI
- LGA1151 socket 9th/8th gen Intel® Core™ i7/i5/i3, Xeon® E, Pentium® or Celeron® processor (Coffee Lake Refresh)
- Four 288-pin DDR4-2666/2400 ECC DIMM for up to 128GB of memory
- DisplayPort++, VGA, DVI-D and HDMI with triple-view supported
- 4 SATA-600 with RAID 0/1/5/10
- 2 USB 3.1 Gen2 and 4 USB 3.1 Gen1
- TPM 2.0 supported (optional)
| Form Factor | |
| Form Factor | ATX |
| System | |
| Processor | LGA1151 socket 9th/8th gen Intel® Core™ i7/i5/i3, Xeon® E, Pentium® or Celeron® processor |
| Integrated Graphics | Yes |
| Security Hardware | |
| Chipset | Intel® C246 |
| Storage | 4 x SATA-600 with RAID 0/1/5/10 |
| Storage Support | |
| Memory | 4 x 288-pin DDR4-2666/2400 ECC DIMM, up to 64GB |
| Graphics | Intel HD graphics Integrated |
| I/O Ports | |
| USB 2.0 | 7 x USB 2.0 |
| USB 3.0 | |
| USB 3.1 | 2 x USB 3.1 Gen2 (rear I/O) 4 x USB 3.1 Gen1 (rear I/O, internal box header) |
| Serial | 4 x RS-232 (Internal box header) 2 x RS-232/422/485 (1 rear I/O; 1 internal box header) |
| Video | 1 x VGA 1 x DVI-D 1 x HDMI 1 x DisplayPort |
| Ethernet | 2 x 10/100/1000 Mbps (Intel® i211-AT & Intel® i219-LM) |
| Other Ports | DIO MIC-in/Line-in/Line-out 1 x PS2 keyboard and mouse |
| Expansion | |
| Expansion Interface | 1x PCIe x16 slot 4 x PCIe x4 slot 1 x PCIe x1 slot 1 x PCI slot |
| Operating System | |
| Operating System | Windows 10 |
| Power | |
| DC Input / Source Voltage | |
| Operating Temperature | |
| Operating Temperature | Operating Temperature 0°C to 60°C |
| Humidity Range | 10% ~ 95%, non-condensing |
| Dimensions / Weight | |
| Weight (kg) | |
| Dimensions | 305 x 244 mm |
| Certification | |
| Certification | CE |
| Valmistaja / Brand | Axiomtek |
|---|---|
| Socket | LGA 1151 |
| Form Factor | ATX |
