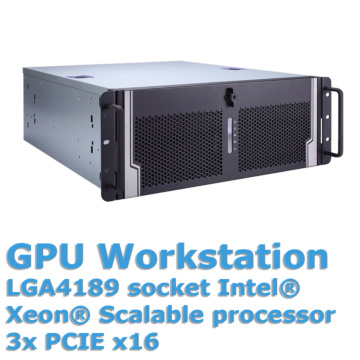

iHPC300 GPU Workstation
Tuotenro
iHPC300
Toimitusaika 21-30pv
0,00 EUR
4U rackmount GPU workstation with Intel® Xeon® scalable processor, 1200W, and 3 PCIe x16
| System | |
| Processor | LGA4189 socket Intel® Xeon® Scalable processor up to 270W, 40 cores |
| Chipset | Intel® 621A |
| Storage | Exposed 3 x 5.25" HDD drive bay and 1 x 3.5" HDD drive bay Internal 3 x 3.5" HDD drive bay or 2 x 3.5" or 1 x 2.5" 6 x SATA3 with RAID 0/1/5/10 1 x NVMe M.2 M Key: 2280 (PCIe x4) |
| Storage Support | |
| Memory | 6 x DDR4-3200 R-DIMM unbuffered non-ECC/ECC memory, 384GB max |
| Graphics | AST2510 |
| I/O Ports | |
| USB 2.0 | 6 x USB2.0 |
| USB 3.0 | 6x USB 3.0 |
| Serial | 1x RS-232/422/485 |
| Video | 1 x VGA |
| Ethernet | 2 x 10/100/1000Mbps LAN (Intel® i210-AT) |
| Other Ports | Mic-in/Line-out/Speaker-out 8x DIO 1x PS2 keyboard/mouse |
| Expansion | |
| Expansion Interface | Slot1: PCIe x8 Slot2: PCIe x16 (signal: x16 or x8) Slot3: PCIe x8 slot (signal: x0 or x8) Slot4: PCIe x16 (Gen4) Slot5: M.2 key M 2280 (signal: x4) Slot6: PCIe x16 (Gen4) Slot7: PCIe x8 |
| Operating System | |
| Operating System | Windows Server 2019 Linux: Ubuntu 20.04 |
| Power | |
| Source Voltage | 1200W 2000W AC Input voltage: 100 to 240V |
| Operating Temperature | |
| Operating Temperature | 0°C ~ +40°C |
| Humidity Range | 10% ~ 95%, non-condensing |
| Cooling System / Thermal Solution | |
| Thermal Solution | 1 x 12cm PWM front fan |
| Dimensions / Weight | |
| Weight (kg) | 17 kg |
| Dimensions | 430 x 174.8 x 515 mm |
| Enclosure | |
| Bezel | |
| Material | Aluminum / Steel |
| Mounting | Desk / Rack |
| Certification | |
| Certification | CE, FCC Class |
