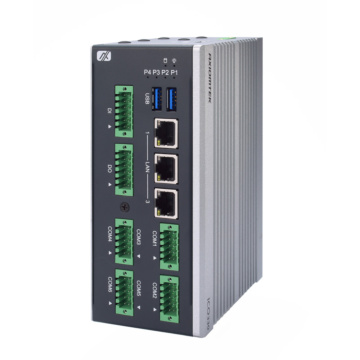

    DIN-rail Fanless Embedded System with Intel Atom® x6212RE / x6414RE Processor, 3x Isolated LAN, Isolated COM and DIO

    • Cost-effective with fanless design
    • Intel Atom®   x6212RE / x6414RE processor
    • 6 isolated COM, isolated DIO (8-in/8-out), 3x 2.5 GbE LAN
    • Wide operating temperature range from -40°C to +70°C
    • 9 to 36 VDC, typical 12-24V power input with OVP, UVP, OCP, RPP
    • Supports TPM 2.0
    • Supports cold boot at -40°C
    System
    Processor

    Intel Atom® x6212RE processor, 1.2GHz/2C/6W

    Intel Atom® x6414RE processor, 1.5GHz/4C/9W

    Security Hardware TPM2.0
    Chipset SoC integrated
    Storage 1 x mSATA (occupied 1 x PCI Express Mini Card slot)
    1 x Internal 2.5" SATA drive (9.5 mm height)
    1 x 8G eMMC on board
    Memory 1 x DDR4-3200 SO-DIMM, up to 32GB
    Graphics
    I/O Ports
    USB 2.0
    USB 3.0 2x USB3.1
    Serial 2 x Isolated RS-232/422/485 (Phoenix Type)
    4 x Isolated RS-232/422/485 (4-wire, Phoenix Type)
    Isolation voltage: 1.5 kV
    Video 1 x HDMI
    Ethernet 3 x RJ-45 isolated 2.5 GbE LAN (Intel® i226-IT)
    Isolation voltage: 1.5 kV
    Other Ports Isolated DIO 8-bit
    Expansion
    Expansion Interface 1 x M.2 (USB 3.0, PCIe; for 5G & NVMe) (optional)
    1 x Full-size Rev.1.2 PCI Express Mini Card slot with PCIe and USB signal (for LTE/Wi-Fi module)
    1 x Half-size Rev.1.2 PCI Express Mini Card slot with USB/mSATA signal (for Wi-Fi/mSATA)
    2 x SIM slot (1 for M.2; 1 for full-size PCI Express Mini Card)
    Operating System
    Operating System Windows® 10 / LINUX
    Power
    DC Input / Source Voltage 1 x Terminal block, 9 to 36 VDC, typical 12/24V
    Operating Temperature
    Operating Temperature -40°C ~ +70°C with W.T. SSD
    Humidity Range 0% ~ 95%, non-condensing
    Cooling System / Thermal Solution
    Thermal Solution Passive - Fanless
    Dimensions / Weight
    Weight (kg) 1.0 kg
    Dimensions 72 x 110 x 155 mm
    Enclosure
    Material Aluminum / Steel
    Mounting Din-rail , Wall Mounting
    Certification
    Certification CE (Class A), FCC (Class A)
    Lisätietoja
    JäähdytysFanless
    CPU FamilyElkhart Lake (Atom/Celeron/Pentium)
    Operating TempWide Temp -40..70C
