ICO110-N3350
Tuotenro
ICO110-N3350
Tulossa
0,00 EUR

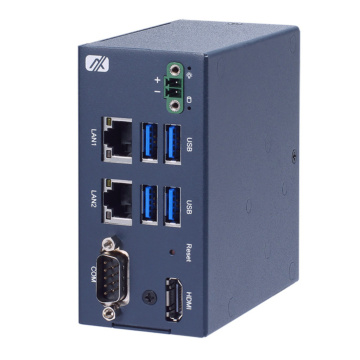

Ultra-Compact DIN-Rail Fanless Embedded System with Intel® Celeron® Processor N3350, COM, 2 LAN, 4 USB, HDMI, WT
- Super compact size with fanless and cableless design
- Intel® Celeron® processor N3350, reliable F1 stepping version CPU
- COM, 4 USB, and 2 GbE LAN
- Wide operating temperature range from -40°C to +70°C
- 9 to 36 VDC wide range power input (typical: 12 to 24 VDC)
- OVP, UVP, OCP, and RPP power protection design
- AXEAPI for intelligent remote monitoring software integration
| System | |
| Processor | Intel® Celeron® N3350 2C @1.1 GHz, TDP: 6W |
| Security Hardware | TPM 2.0 |
| Chipset | SoC integrated |
| Storage | 1 x mSATA (occupied 1 x PCI Express Mini Card slot) |
| Memory | 1 x SO-DIMM DDR3L-1866, up to 8GB |
| Graphics | Integrated, HDMI output |
| I/O Ports | |
| USB 2.0 | |
| USB 3.0 | 4x USB3.0 |
| Serial | 1 x DB9 RS-232/422/485 |
| Video | 1 x HDMI |
| Ethernet | 2 x RJ-45 isolated GbE LAN Realtek RTL8111HN for ICO110-N3350-AC Realtek RTL8119I for ICO110-N3350-AW |
| Other Ports | |
| Expansion | |
| Expansion Interface | |
| Operating System | |
| Operating System | Windows® 10 / LINUX |
| Power | |
| DC Input / Source Voltage | 1 x Terminal block, 9 to 36 VDC (typical: 12 to 24 VDC) |
| Operating Temperature | |
| Operating Temperature | ICO110-N3350-AC 0°C ~ +50°C with N.T. SSD ICO110-N3350-AW -40°C ~ +70°C with W.T. SSD |
| Humidity Range | 0% ~ 95%, non-condensing |
| Cooling System / Thermal Solution | |
| Thermal Solution | Passive - Fanless |
| Dimensions / Weight | |
| Weight (kg) | 0.3 kg |
| Dimensions | 100 x 100 x 48 mm |
| Enclosure | |
| Material | Aluminum / Steel |
| Mounting | Din-rail , Wall Mounting |
| Certification | |
| Certification | CE (Class A), FCC (Class A) CE/FCC EN 55035 (Class A), FCC part 15 B (Class A) |
| Valmistaja / Brand | Axiomtek |
|---|---|
| Jäähdytys | Fanless |
| Operating Temp | Wide Temp -40..70C |
