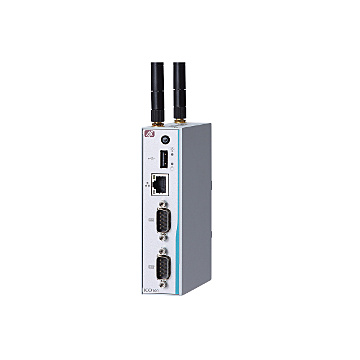

ICO100-839

* Extreme cost-effective with fanless and cableless design
* Intel® Celeron™ N3350 processor
* 2 COM, 2 USB, 1 GbE LAN
* 8-bit programmable DIO for IoT gateway applications
* Wide operating temperature range from -20°C to +70°C
* 12-24 VDC wide range power input
* OVP, UVP, OCP, RPP power protection design
* AXView 2.0 intelligent embedded monitoring software for IoT

ICO100-839
*4GB RAM

System
Processor	Intel® Celeron® N3350 2C @1.1 GHz
CPU Performance
Security Hardware
Chipset	SoC
Storage	1 x mSATA
Storage Support
Memory	1 x 204-pin SO-DIMM DDR3L up to 8 GB
Graphics	1 x VGA
I/O Ports
USB 2.0	2 x USB 2.0
USB 3.0
Serial	2 x RS-232/422/485
Video	1 x VGA
Ethernet	1x GbE LAN ports
Other Ports	1 x DI/DO (8-bit programmable, DB9 female connector)
Expansion
Expansion Interface	2 x PCI Express Mini Card 1 x SIM socket
Operating System
Operating System	Windows® 10 IoT, Linux support package
Power
DC Input / Source Voltage	12-24V DC Input in system (optional 230V AC adapter)
Operating Temperature
Operating Temperature	Operating Temperature -20°C to 70°C, with Wide-Temp SSD
Humidity Range	10% ~ 90%, non-condensing
Cooling System / Thermal Solution
Thermal Solution	Passive - Fanless
Dimensions / Weight
Weight (kg)
Dimensions	31 mm (W) x 100 mm (D) x 125 mm (H)
Enclosure
Bezel
Material	Aluminum / Steel
Mounting	Desk/Wall mounting
Peripherals & Devices
Accessories
Extra Features
Certification
Certification	CE
