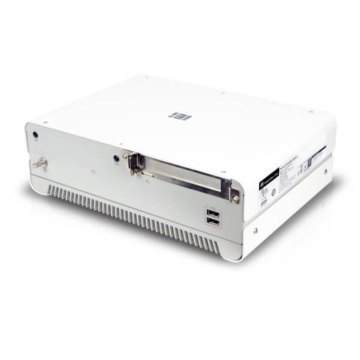

HTB-100-HM170 Medical PC
Tuotenro
HTB-100-HM170
Toimitusaika 21-30pv
0,00 EUR
● Medical grade with high performance fanless embedded computing
● 6th Gen Intel® Core™ processor platform with Intel® HM170 chipset and DDR4 memory
● Safety / EMC: CE, FCC class B part 18, IEC 60601-1 V3.1, IEC 60601-1-2 V4.0, IEC 62304, ISO 14971
● Triple independent display with high resolution support
● Isolated COM ports for enhancing safety among devices
● Optional PCIe x16 expansion slot supports more flexible functions
| System | |
| Processor | Intel® Core™ i7-6822EQ 2GHz |
| CPU Performance | |
| Security Hardware | |
| Chipset | Intel® HM170 |
| Storage | 2x 2.5” SATA3 HDD/SSD Bay |
| Memory | 2x DDR4 260-pin SO-DIMM socket, support up to 32 GB |
| Audio | Realtek ALC662, 5.1-channel High Definition Audio
(HDA) Line-in, Line-out, Mic-in |
| Graphics | |
| I/O Ports | |
| USB 2.0 | 2 x USB2.0 |
| USB 3.0 | 4x USB 3.2 |
| Serial | 2 x RS-232 (DB-9, with 2.5 kV isolation) 2 x RS-232/422/485 (DB-9, with 2.5 kV isolation) |
| Video | 1x VGA 1x HDMI 2.0 |
| Ethernet | 2x GbE LAN , RJ-45 |
| Other Ports | Mic-in/Line-out, Line-in |
| Expansion | |
| Expansion Interface | 1x PCIe x16 1x Half-size mPCIEe 1x Full-size mPCIEe 1x M.2 (PCIe x2 /USB2.0) |
| Operating System | |
| Operating System | Windows® 10 |
| Power | |
| DC Input / Source Voltage | Power Input Voltage 12-28 VDC 230V AC Adapter, Medical cert |
| Operating Temperature | |
| Operating Temperature | 0°C ~ +40°C |
| Shock/Vibration | Half-sine wave shock 5G; 11ms; 100 shocks per axis MIL-STD-810G 514.6 C-1 (with SSD) |
| Humidity Range | 10% ~ 95%, non-condensing |
| Cooling System / Thermal Solution | |
| Thermal Solution | Passive - Fanless |
| Dimensions / Weight | |
| Weight (kg) | 3.0 kg |
| Dimensions | 294 x 209 x 90.2 mm |
| Enclosure | |
| Bezel | |
| Material | Aluminum / Steel |
| Mounting | Desk / Wall mounting |
| Peripherals & Devices | |
| Accessories | |
| Extra Features | |
| Certification | |
| Certification | CE, FCC class B part 18 IEC 60601-1 V3.1, IEC 60601-1-2 V4.0, IEC 62304, ISO 14971 |
