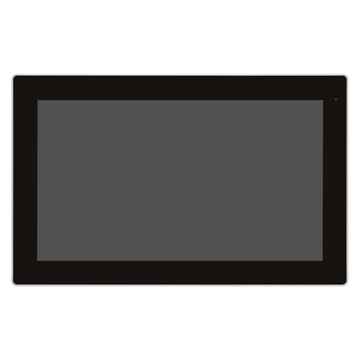

    15.6” Modular Design, 11th Gen. Intel Core i3/i5 Fanless Industrial Compact Size Panel

    • 15.6” Industrial Compact Size Panel PC
    • Flat Front Panel Touch Screen with IP66 front bezel
    • Fanless Design
    • 11th Gen. Intel Core i3/i5 Processor
    • 2 x 260Pin SO-DIMM DDR4 slot, up to 64GB 3200MHz
    • DC 9~36V Wide-Ranging Power Input
    • Support expansion via Full-size Mini-PCIe and M.2 slots
    • Support TPM2.0 hardware security
    • High Brightness 1,000 nits for option
    System
    Processor 11th Gen. Intel Core i3/i5 Cpu
    CPU Performance
    Security Hardware TPM2.0
    Chipset SoC
    Storage 1 x M.2 M-Key 2280 (Support Pcie/SATA)
    Storage Support
    Memory 2 x 260-pin DDR4-3200 SO-DIMM, up to 64GB
    Display
    Screen Size 15.6" TFT LCD
    Screen Resolution 1920x1080
    Display Ratio 16 ::09
    Contrast Ratio 800::1
    Brightness 400 nits
    Viewing Angle 170/170
    Number of Colors 16.2M
    Touch Screen
    Touchscreen Projected Capacitive (Multi-touch)
    I/O Ports
    USB 2.0 -
    USB 3.0 4x USB 3.0
    Serial 1x RS-232
    Video 1 x DP / HDMI
    Ethernet 2 x RJ45 GbE
    Other Ports Audio Line-out x 1
    Operating System
    Operating System Windows11/Windows 10
    Power
    DC Input / Source Voltage +12V/+19V/+24VDC
    1 x Terminal block
    Power Management
    Expansion Slots

    1 x Full-size PCI-Express Mini Card slot
    1 x M.2 Key E 2230 (for Wi-Fi)
    Multimedia
    Integrated Speakers -
    Operating Temperature
    Operating Temperature 0ºC to 50ºC
    Humidity Range 10% to 95% non-condensing
    Cooling System / Thermal Solution
    Thermal Solution Passive - Fanless
    Dimensions / Weight
    Weight (kg) 3.7 kg
    Dimensions 405 x 256 x 59 mm
    Enclosure
    Bezel IP66 Front
    Material Aluminum
    Mounting Panel , VESA
    Certification
    Certification CE/FCC
    Lisätietoja
    JäähdytysFanless
    Näytön koko15.6"
    Kosketusominaisuuden tyyppiProjected Capasitive (PCAP)
