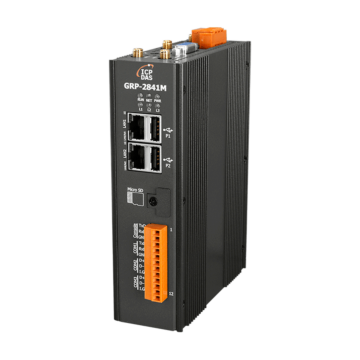

GRP-2841M 4G/5G/ Ethernet Gateway
Tuotenro
GRP-2841M
Toimitusaika 21-30pv
0,00 EUR
4G/5G/ Ethernet Gateway
- Cortex-A53 CPU, 1.6 GHz, quad-core
- 1 GB LPDDR4 RAM and 8 GB eMMC Flash
- Linux Kernel 4.14.98
- Provide NAT and port forwarding function
- Intelligent Remote Terminal Unit (RTU)
- Intelligent multiport serial gateway
- 4G / 5G wireless module (option)
- 64-bit Hardware Serial Number for Software Protection
- 10/100/1000M Two Ethernet Ports
- 4 Serial Ports (RS-232/485)
| Main Unit | |
| CPU | Cortex-A53 CPU, 1.6 GHz, quad-core |
| System Memory | 1 GB LPDDR4 SDRAM |
| Storage | 8 GB eMMC Flash, 4 GB microSD card (up to 32 GB) |
| Real Time Clock | Provide seconds, minutes, hours, dates,day of week, month, year |
| Watchdog Timer | Yes |
| Software | |
| OS | Linux Kernel 4.14.98 |
| Service | SSH, Web, SNMP Server, SMTP, DDNS |
| Function | NAT and port forwarding function Remote Terminal Unit (RTU) Multiport serial gateway 4G/5G wireless router (option) |
| Interface | |
| Region | Global |
| ETH Port | 2 x RJ-45 GbE |
| USB | 2x USB2.0 |
| RS232 | 1x RS-232 (console, debug) 1x RS-232 2x RS-485 (2500VDC, Isolated) |
| CAN | - |
| I/O | - |
| MicroSD | - |
| Wi-Fi / GPS / PoE | |
| 2.4/5 Ghz | Option |
| Antenna Connectors | |
| Cellular Antenna | 4 x SMA |
| GPS Antenna | - |
| Power | |
| Power Input (DC) | 12-48V DC |
| Sleep Mode | |
| Environmental | |
| Operating Temperature | -25...70C |
| Humidity | 10-90% |
| Mechanical | |
| Dimension | 44 x 164 x 129mm |
| Enclosure | Metal |
| Mounting | Din |
| Valmistaja / Brand | ICP DAS |
|---|
