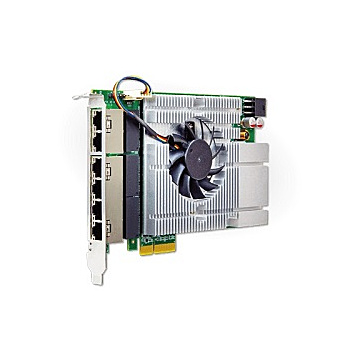

GPOE-6P PoE+ PCIE Adapter
Tuotenro
IEI_GPOE-6P
Toimitusaika 14-22pv
PCI Express Power over ethernet card, 6-port 1000 Base(T), 802.3at/bt compliant
- Provide 6 x10/100/1000Base-T(X) PoE (P.S.E.) ports
- Total 180 Watts power budget with maximum 90 Watts per port
- PoE power sourced from 12~24VDC of ATX power
- Each LAN port supports both PoE and Non-PoE connections (Auto Detect & Classification)
- Supports SW/RDK (IEI GPOE Management Software Tools)
- Compatible with x4, x8 and x16 PCIe slots
- IEEE 802.3at/bt PoE compliant
| System | |
| Cooling method | One 1x4pin fan |
| Physical Characteristics | |
| Dimensions (mm) | 169.44 mm x 106.65 mm |
| Net Weight | 286g |
| I/O Interface | |
| Ethernet | Description: 6 x Intel® i211AT controller, 9kB jumbo frame - PoE Capability - IEEE 802.3at with 30W / 52V per port IEEE 802.3bt with 90W / 52V per port (Support for total 180 watts under full load) |
| Power | |
| Input | 12~24V DC input 1 x Internal DC input (2x3 pin) |
| Environmental | |
| Operating Temperature | 0°C ~ 60°C |
| Card Slot Interface | |
| PCIe | PCI Express x4 |
| Valmistaja / Brand | IEI |
|---|---|
| Connection | 6x 1GBe LAN Ethernet IP |
| Data Interface | PCIEx4 |
