GP-3000

Muokkaa GP-3000
GP-3000 Barebone

* Pakolliset kentät

Tuote
GP-3000
GP-3000

0,00 EUR

Yhteenveto
    Tuotenro
    GP-3000
    Toimitusaika 21-30pv

    0,00 EUR

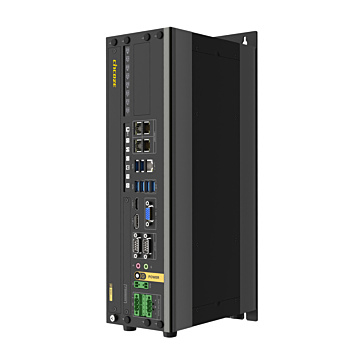

    9th/8th Gen Intel® Xeon®/Core™ GPU Computer, Supports Dual Full-length GPU Expansion Up to 500W

    • Supports 9th/8th Gen Intel® Xeon®/Core™ Processor (35W / 65W / 80W)
    • 2 x DDR4 SO-DIMM Sockets, Supports ECC/non ECC type up to 2666 MHz, 64GB
    • 4 x 2.5" Hot Swappable SATA III HDD/SSD Bays (Max Height 15 mm)
    • 1 x M.2 M Key Socket (NVMe), 1 x M.2 E Key Socket (CNVi)
    • 2 x Front Accessible SIM Card Slots for Signal Redundancy
    • CMI Technology for Various I/O Module Expansions
    • CFM Technology for Power Ignition Sensing & PoE Function
    • Versatile Mounting Methods (Wall / Stand / Face-up / 19" Rack Mount)
    • Military Standard Shock & Vibration Proof
    System
    Processor Supports 9th/8th Gen Intel® Xeon®/Core™ CPU (35W / 65W / 80W)
    CPU Performance
    Security Hardware
    Chipset Intel C246
    Storage 4x 2.5” Front Accessible SATA3 HDD/SSD Bay
    1x M.2 Key M 2280 Socket, Supports PCIe x4 NVMe SSD or SATA SSD (Gen3))
    Storage Support Support RAID 0/1/510
    Memory 2x DDR4 SO-DIMM Socket, Support Up to 64GB
    Graphics Integrated Intel® HD Graphics
    I/O Ports
    USB 2.0
    USB 3.0 2x 10Gbps USB 3.2 Gen2, Type A
    4x 5Gbps USB 3.2 Gen1, Type A
    Serial 2x RS-232/422/485
    Video 1 x DisplayPort
    1 x DVI-I
    1 x VGA
    Ethernet 5x GbE LAN , RJ-45
    Other Ports Mic-in/Line-out
    1x Remote Power On/Off Connector
    1 x Remote Reset
    Expansion
    Expansion Interface Optional GPU Expansion Box
    - 1 x PCIe x 4 + 1 x PCIe x 16
    - 2 x PCIe x 16 (8 Lanes) + 1 x PCIe x 1 + 1 x PCIe x 4

    1x M.2 Key E 2230 Socket, Supports Intel CNVi Module
    1x M.2 Key M 2280 Socket, Support NVMe/SATA SSD

    1x CMI (Combined Multiple I/O) High Speed Interface
    1x CMI (Combined Multiple I/O) Low Speed Interface
    2x Full-size Mini-PCIe Sockets
    2x SIM Socket
    Operating System
    Operating System Windows® 10
    Power
    DC Input / Source Voltage Power Input Voltage 9~48VDC
    Operating Temperature
    Operating Temperature -40°C ~ +70°C with W.T. SSD, 35W TDP CPU
    -40°C ~ +60°C with W.T. SSD, 60W TDP CPU
    -40°C ~ +50°C with W.T. SSD, 80W TDP CPU
    Humidity Range 10% ~ 95%, non-condensing
    Cooling System / Thermal Solution
    Thermal Solution Passive – Fanless, Optional Fan
    Dimensions / Weight
    Weight (kg) 8.5 kg
    Dimensions 105 x 195 x 370 mm
    Enclosure
    Bezel
    Material Aluminum / Steel
    Mounting Wall Mount / Desktop Mount / 19" Rack Mount / Face-up Mount
    Peripherals & Devices
    Accessories Optional Modules
    Extra Features
    Certification
    Certification CE, FCC, ICES-003 Class A, EN50121-3-2 (Railway), E-mark




    Lisätietoja
    Valmistaja / BrandCincoze
    JäähdytysFanless
    CPU FamilyCoffee Lake Refresh (9th Gen Core i3/i5/i7)
    Operating TempWide Temp -40..70C
