GOT812W-511
Tuotenro
GOT812W-511-C-DC
Toimitusaika 21-30pv
0,00 EUR

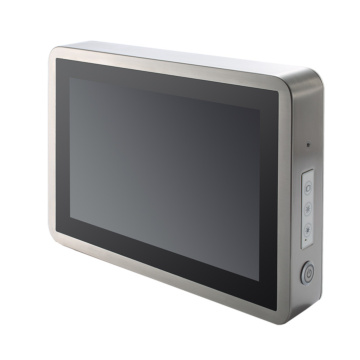

12.1" WXGA TFT IP66 & IP69K-rated Stainless Steel Fanless PCT (or Resistive Touch) Panel Computer with Intel® Core™ i5-7300U Processor and Flat Bezel Design (-20°C to +50°C)
- 12.1" TFT flat bezel LCD display
- IP66/IP69K-rated (NEMA 4X) water/dust/corrosion-proof design
- Full stainless steel enclosure with SUS 316
- -20°C to +50°C wide operating temperature range
- Fanless design with Intel® Core™ i5-7300U processor
- Optional Wi-Fi/3G kit for wireless network connectivity
- 9 to 36 VDC wide range power input
- Supports VESA mount
- M12 type connectors for harsh environments
| System | |
| Processor | Intel® Core™ i5-7300U 2.6 GHz, up to 3.5 Ghz |
| Memory | 1 x 260-pin DDR4-2133 SO-DIMM, up to 16GB |
| Chipset | SoC |
| Storage | 1 x 2.5" SATA HDD (9.5 mm height) |
| Expansion | 1 x Full-size PCI Express Mini Card slot 1 x Half-size PCI Express Mini Card slot |
| Display | |
| Screen Size | 12.1" TFT LCD |
| Screen Resolution | 1280*800 |
| Display Ratio | wide |
| Contrast Ratio | |
| Brightness | 400 nits |
| Viewing Angle | |
| Number of Colors | |
| Touch Screen | |
| Touchscreen | Projected Capacitive (Multi-touch) |
| I/O Ports | |
| USB 2.0 | 4x USB2.0 |
| USB 3.0 | |
| Serial | 2 x RS-232/422/485 |
| Video | |
| Ethernet | 1 x RJ45 GbE (Intel® I210-IT; X-coded) |
| Other Ports | |
| Operating System | |
| Operating System | Windows 10 |
| Power | |
| DC Input / Source Voltage | 9-36V DC |
| Power Comsumption | 56.5W |
| Operating Temperature | |
| Operating Temperature | -20ºC to 50ºC |
| Humidity Range | 10% to 95% non-condensing |
| Cooling System / Thermal Solution | |
| Thermal Solution | Passive - Fanless |
| Dimensions / Weight | |
| Weight (kg) | 4.6 kg |
| Dimensions | 332 x 55 x 234 mm |
| Enclosure | |
| Protection | IP66 ALL sides |
| Material | Stainless Steel |
| Mounting | VESA / Suspension |
| Certification | |
| Certification | CE / FCC |
| Jäähdytys | Fanless |
|---|---|
| Näytön koko | 15.6" |
| Kosketusominaisuuden tyyppi | Projected Capasitive (PCAP) |
| CPU Family | Kaby Lake (7th 8th Gen Core i3/i5i7/Celeron) |
