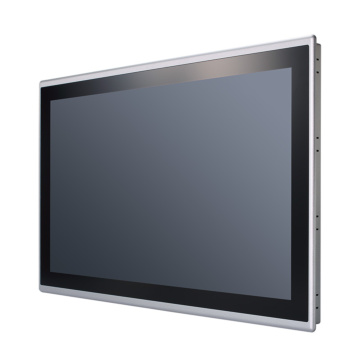

    21.5" FHD Fanless Touch Panel Computer with LGA1700 Socket 13th/12th Gen Intel® Core™ i7/i5/i3 or Pentium® Processor

    • 21.5" FHD TFT LCD with 400 nits of brightness
    • 10-point PCAP multi-touch panel
    • Supports one 2.5” SATA HDD/SSD
    • Supports 2 HDMI outputs for 2nd display
    • Supports WLAN module and antenna (optional)
    • Supports 4 USB and 2 COM ports
    • Flexible I/O window with support for COM3, and DIO (optional)
    • Supports panel mount, VESA mount, desktop stand, and wall mount
    • Wide temperature range of -10 to +50°C
    System
    Processor LGA1700 socket 13th/12th gen Intel® Core™ i7/i5/i3 or Pentium® processor (up to 35W)
    CPU Performance
    Security Hardware TPM 2.0
    Chipset Intel® H610
    Storage 1 x 2.5” SATA HDD/SSD (7 mm and 9.5 mm height; removable)
    Memory 1 x 260-pin DDR4 3200MHz SO-DIMM, up to 32GB
    Display
    Screen Size 21.5" TFT LCD
    Screen Resolution 1920x1080
    Display Ratio 16 ::09
    Contrast Ratio
    Brightness 400 nits
    Viewing Angle
    Number of Colors
    Touch Screen
    Touchscreen Projected Capacitive (Multi-touch)
    I/O Ports
    USB 2.0 2x USB 2.0
    USB 3.0 2x USB 3.2 Gen1
    Serial 1x RS-232
    1x RS-232/422/485
    Video 2 x HDMI 1.4b
    Ethernet 1 x RJ45 GbE (Intel I219-V)
    1 x RJ45 2.5GbE (Intel I225-V)
    Other Ports Audio Line-out x 1
    1 x Remote power switch
    Operating System
    Operating System Windows 10 / Windows 11 / Linux
    Power
    DC Input / Source Voltage 10-36V DC
    1 x Terminal block
    Power Management
    Expansion Slots

    1 x M.2 Key E 2230 with PCIe x1 and USB 2.0
    1 x PCI Express Mini Card (USB+PCIe signal+nano SIM slot “LTE”)
    1 x Flexible I/O window with support for COM3, and DIO (optional)
    Multimedia
    Integrated Speakers -
    Operating Temperature
    Operating Temperature -10ºC to 50ºC (35W CPU)
    Humidity Range 10% to 95% non-condensing
    Cooling System / Thermal Solution
    Thermal Solution Passive - Fanless
    Dimensions / Weight
    Weight (kg) 8.7 kg
    Dimensions 542 x 76.4 x 338 mm
    Enclosure
    Bezel IP65 Front
    Material Aluminum / Metal
    Mounting Panel mount
    VESA mount
    Desktop stand
    Wall mount
    Certification
    Certification CE Class A, IEC/EN61000-6-4, IEC/EN61000-6-2
    FCC 47 CFR Part 15 Subpart B (Class A)
    UKCA
    RoHS standard
    Lisätietoja
    JäähdytysFanless
    Näytön koko21.5"
    Kosketusominaisuuden tyyppiProjected Capasitive (PCAP)
    CPU FamilyAlder Lake (12th Gen Core i3/i5i7/i9)
