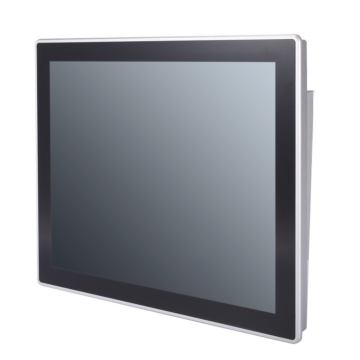

    17" SXGA Fanless Touch Panel Computer with LGA1700 Socket 12th Gen Intel® Core™ i7/i5/i3 & Pentium® Processor

    • 17” SXGA LCD with 350 nits of brightness
    • 5-wire resistive touch
    • Supports one 2.5” SATA HDD/SSD
    • Flat front panel touch screen with rugged IP65 front bezel
    • Fanless design
    • Supports WLAN module & antenna (optional)
    • Supports 4 USB & 2COM ports
    • TPM 2.0 onboard
    • Swappable HDD Tray
    • Supports panel mount, VESA mount, desktop stand, and wall mount
    System
    Processor LGA1700 socket 12th gen Intel® Core™ i7/i5/i3 & Pentium® processor (up to 35W)


    Memory 1 x 260-pin DDR4 3200MHz SO-DIMM, up to 32GB
    Chipset Intel® H610
    Storage 1 x 2.5” SATA HDD(WT)/SSD (7mm and 9.5mm height, removable)
    Expansion 1 x M.2 Key E type 2230 with PCIe x1 and USB 2.0
    1 x PCI Express Mini Card (USB+PCIe signal)
    1 x Flexible IO window; supports COM3 (on board by option)


    Display
    Screen Size 17" FHD TFT LCD
    Screen Resolution 1280x1024
    Display Ratio 4::3
    Contrast Ratio
    Brightness 350 nits
    Viewing Angle
    Number of Colors
    Touch Screen
    Touchscreen 5-wire Resistive Touch Screen
    I/O Ports
    USB 2.0 2x USB2.0
    USB 3.0 2 x USB3.2
    Serial 1 x RS-232/422/485
    1 x RS-232
    Video 2 x HDMI 1.4b
    Ethernet 1 x RJ-45 for 10/100/1000Mbps (Intel® I219-V)
    1 x RJ-45 for 10/100/1000/2500Mbps (Intel® I225-V)
    Other Ports TPM 2.0
    1 x Phoenix-type connector for DC power input
    1 x Switch for power on/off
    1 x Remote power switch
    Operating System
    Operating System Windows 10 /Windows 11
    Power
    DC Input / Source Voltage 12-24V DC
    Power Comsumption 120W
    Operating Temperature
    Operating Temperature -10ºC to 50ºC
    Humidity Range 10% to 95% non-condensing
    Cooling System / Thermal Solution
    Thermal Solution Passive - Fanless
    Dimensions / Weight
    Weight (kg) 11.0kg
    Dimensions 398.0 x 77.5 x 330.4 mm
    Enclosure
    Protection IP65 Front
    Material Metal
    Mounting Panel mount
    VESA mount
    Desktop stand
    Wall mount


    Certification
    Certification CE Class A, IEC/EN61000-6-4, IEC/EN61000-6-2
    FCC 47 CFR Part 15 Subpart B (Class A)
    UKCA
    RoHS standard
    Lisätietoja
    JäähdytysFanless
    Näytön koko17"
    Kosketusominaisuuden tyyppiResistive
    CPU FamilyAlder Lake (12th Gen Core i3/i5i7/i9)
