GOT315W-521

Muokkaa GOT315W-521
GOT315W-521-PCT-DC

* Pakolliset kentät

Tuote
GOT315W-521
GOT315W-521

0,00 EUR

Yhteenveto
    Tuotenro
    GOT315W-521
    Toimitusaika 21-30pv

    0,00 EUR

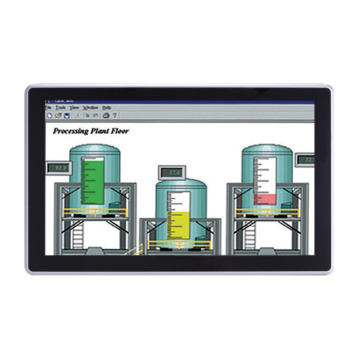

    15.6" WXGA TFT Multi-touch Panel Computer with LGA1151 9th/8th Gen Intel® Core™ i7/i5/i3, Intel® Pentium® Gold or Intel® Celeron® Processor

    • 15.6" WXGA projected capacitive multi-touch widescreen
    • Fanless design with LGA1151 9th/8th gen Intel® Core™ i7/i5/i3, Intel® Pentium® Gold or Intel® Celeron® processor (up to 35W)
    • Supports WLAN module and antenna (optional)
    • 2.5" SATA HDD/SSD
    • 2 LAN, 4 USB, 2 COM, 1 HDMI, 1 DisplayPort, and 1 VGA
    • IP65-rated aluminum front bezel
    • Supports panel mount, VESA mount, and wall mount
    System
    Processor LGA1151 9th/8th gen Intel® Core™ i7/i5/i3, Intel® Pentium® Gold or Intel® Celeron® processor (up to 35W)
    Security Hardware TPM 2.0
    Chipset Intel® H310
    Storage 1 x mSATA
    1 x 2.5” SATA HDD/SSD (7 mm and 9.5 mm, removable)
    Memory 1 x 260-pin DDR4-2666/2400 SO-DIMM, up to 32GB
    Display
    Screen Size 15.6" TFT LCD
    Screen Resolution 1366*768
    Display Ratio 16 ::09
    Contrast Ratio
    Brightness 400 nits
    Viewing Angle
    Number of Colors
    Touch Screen
    Touchscreen Projected Capacitive (Multi-touch)
    I/O Ports
    USB 2.0 2x USB2.0
    USB 3.0 2x USB 3.0
    Serial 1 x 9-pin D-sub Male for RS-232
    1 x COM for RS-232/422/485
    Video 1 x HDMI
    1 x DP
    1 x VGA
    Ethernet 2 x RJ45 GbE
    Other Ports 1 x Line-out
    1 x Phoenix type connector for DC power input
    1 x Switch for power on/off (ATX)
    1 x Remote power switch
    1 x AT/ATX switch (DC type only)
    1 x Grounding hole (DC Version)
    Operating System
    Operating System Windows 10/ Linux
    Power
    DC Input / Source Voltage 24V DC
    230V AC-DC Adapter (optional)
    Expansion Slots
    Expansion 1 x Full-size PCI-Express Mini Card slot (PCIe + SATA + USB)
    1 x M.2 Key E 2230 (for Wi-Fi)
    Multimedia
    Integrated Speakers -
    Operating Temperature
    Operating Temperature 0ºC to 50ºC
    Humidity Range 20% to 90% non-condensing
    Cooling System / Thermal Solution
    Thermal Solution Passive - Fanless
    Dimensions / Weight
    Weight (kg) 6.5 kg
    Dimensions 396.8 x 77 x 247.1 mm
    Enclosure
    Bezel IP65
    Material
    Mounting Panel mount
    Wall mount
    VESA arm
    Peripherals & Devices
    Accessories
    Extra Features
    Certification
    Certification CE, EN 61000-6-2, EN 61000-6-4
    Lisätietoja
    JäähdytysFanless
    Näytön koko15.6"
    Kosketusominaisuuden tyyppiProjected Capasitive (PCAP)
    CPU FamilyCoffee Lake (8th Gen Core i3/i5/i7)
