GOT315B-ADL-WCD
Tuotenro
GOT315B-ADL-WCD
Toimitusaika 21-30pv
0,00 EUR

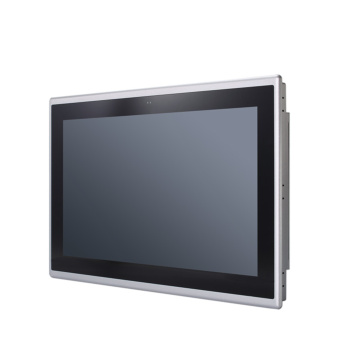

15.6" FHD Fanless Touch Panel Computer with LGA1700 Socket 13th/12th Gen Intel® Core™ i7/i5/i3 or Pentium® Processor
- 15.6" FHD LCD with 450 nits of brightness
- Projected capacitive touch
- Supports one 2.5” SATA HDD/SSD
- Flat front panel touch screen with rugged IP65 front bezel
- Fanless design
- Supports WLAN module and antenna (optional)
- Supports 4 USB and 2 COM ports
- TPM 2.0 onboard
- Swappable HDD tray
- Supports panel mount, VESA mount, desktop stand, and wall mount
| System | |
| Processor | LGA1700 socket 13th/12th gen Intel® Core™ i7/i5/i3 or Pentium® processor (up to 35W) |
| CPU Performance | |
| Security Hardware | TPM 2.0 |
| Chipset | Intel® H610 |
| Storage | 1 x 2.5” SATA HDD/SSD (7 mm and 9.5 mm height; removable) |
| Memory | 1 x 260-pin DDR4 3200MHz SO-DIMM, up to 32GB |
| Display | |
| Screen Size | 15.6" TFT LCD |
| Screen Resolution | 1920x1080 |
| Display Ratio | 16 ::09 |
| Contrast Ratio | |
| Brightness | 450 nits |
| Viewing Angle | |
| Number of Colors | |
| Touch Screen | |
| Touchscreen | Projected Capacitive (Multi-touch) |
| I/O Ports | |
| USB 2.0 | 2x USB 2.0 |
| USB 3.0 | 2x USB 3.2 Gen1 |
| Serial | 1x RS-232 1x RS-232/422/485 |
| Video | 2 x HDMI 1.4b |
| Ethernet | 1 x RJ45 GbE (Intel I219-V) 1 x RJ45 2.5GbE (Intel I225-V) |
| Other Ports | Audio Line-out x 1 1 x Remote power switch |
| Operating System | |
| Operating System | Windows 10 / Windows 11 / Linux |
| Power | |
| DC Input / Source Voltage | 10-36V DC 1 x Terminal block |
| Power Management | |
| Expansion Slots | |
| 1 x M.2 Key E 2230 with PCIe x1 and USB 2.0 1 x PCI Express Mini Card (USB+PCIe signal+nano SIM slot “LTE”) 1 x Flexible I/O window with support for COM3, and DIO (optional) |
|
| Multimedia | |
| Integrated Speakers | - |
| Operating Temperature | |
| Operating Temperature | -10ºC to 50ºC (35W CPU) |
| Humidity Range | 10% to 95% non-condensing |
| Cooling System / Thermal Solution | |
| Thermal Solution | Passive - Fanless |
| Dimensions / Weight | |
| Weight (kg) | 6.7 kg |
| Dimensions | 409.2 x 76.8 x 265.2 mm |
| Enclosure | |
| Bezel | IP65 Front |
| Material | Aluminum / Metal |
| Mounting | Panel mount VESA mount Desktop stand Wall mount |
| Certification | |
| Certification | CE Class A, IEC/EN61000-6-4, IEC/EN61000-6-2 FCC 47 CFR Part 15 Subpart B (Class A) UKCA RoHS standard |
| Jäähdytys | Fanless |
|---|---|
| Näytön koko | 15.6" |
| Kosketusominaisuuden tyyppi | Projected Capasitive (PCAP) |
| CPU Family | Alder Lake (12th Gen Core i3/i5i7/i9) |
