GOT3157W-834-PCT
Tuotenro
GOT3157W-834-PCT-J
Varastossa

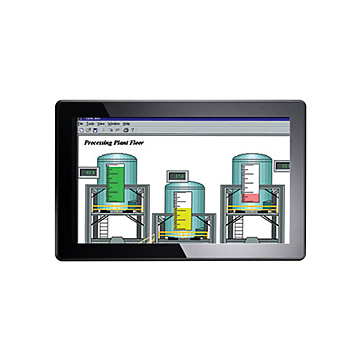

15.6" WXGA TFT Fanless Touch Panel Computer with Intel® Celeron 2.0Ghz J1900 (-10°C ~ +50°C)
Ominaisuudet
* 15.6" WXGA TFT with projected capacitive multi-touch
* Fanless design with Intel® Celeron® processor J1900 4C@2.0 GHz (Bay Trail)
* 2.5" SATA HDD & CFast™ or mSATA
* WLAN/3G module & antenna (optional)
* 2 Gigabit LAN, 2 USB 2.0, 2 USB 3.0 and 2 COM ports
* IP65 front bezel
* Supports panel mount and optional VESA arm/desktop stand/wall mount
* -10°C to +50°C wide temperature range
* Adjust RS-232/422/485 setting via BIOS
* Fanless design with Intel® Celeron® processor J1900 4C@2.0 GHz (Bay Trail)
* 2.5" SATA HDD & CFast™ or mSATA
* WLAN/3G module & antenna (optional)
* 2 Gigabit LAN, 2 USB 2.0, 2 USB 3.0 and 2 COM ports
* IP65 front bezel
* Supports panel mount and optional VESA arm/desktop stand/wall mount
* -10°C to +50°C wide temperature range
* Adjust RS-232/422/485 setting via BIOS
Spesifikaatiot
| System | |
| Processor | Intel® Celeron J1900, 2.0Ghz |
| CPU Performance | 2.0GHz (dual-core) |
| Security Hardware | |
| Chipset | SoC |
| Storage | 1 x SATA SSD 1 x mSATA |
| Storage Support | |
| Memory | 1 x SO DIMM DDR3L 1600MHz up to 8 GB |
| Memory (RAM) | |
| Display | |
| Screen Size | 15.6" TFT LCD |
| Screen Resolution | 1366x768 |
| Display Ratio | 16 ::09 |
| Contrast Ratio | |
| Brightness | 400 nits |
| Viewing Angle | - |
| Number of Colors | |
| Touch Screen | |
| Touchscreen | Projected Capacitive (Multi-touch) |
| I/O Ports | |
| USB 2.0 | 2x USB 2.0 |
| USB 3.0 | 2x USB 3.0 |
| Serial | 2x RS-232/422/485 |
| Video | - |
| Ethernet | 2 x RJ45 GbE |
| Other Ports | Audio Line-out x 1 |
| Operating System | |
| Operating System | Windows 10 |
| Power | |
| DC Input / Source Voltage | 12V DC 230V AC-DC Adapter |
| Power Management | |
| Expansion Slots | |
| 2x mPCIE | |
| Multimedia | |
| Integrated Speakers | - |
| Operating Temperature | |
| Operating Temperature | -10ºC to 50ºC |
| Humidity Range | 10% to 95% non-condensing |
| Cooling System / Thermal Solution | |
| Thermal Solution | Passive - Fanless |
| Dimensions / Weight | |
| Weight (kg) | 5 kg |
| Dimensions | 396 x 247 x 53,9 mm |
| Enclosure | |
| Bezel | |
| Material | Aluminum |
| Mounting | Panel , VESA |
| Note * | |
| Peripherals & Devices | |
| Accessories | |
| Extra Features | |
| Certification | |
| Certification | CE / FCC |
| Jäähdytys | Fanless |
|---|---|
| Näytön koko | 15.6" |
| Kosketusominaisuuden tyyppi | Projected Capasitive (PCAP) |
| CPU Family | Bay Trail (Celeron/Pentium) |
