GOT110-316-PCT-PoE-PD
Tuotenro
GOT110-316-PCT-PoE-PD
Toimitusaika 14-22pv

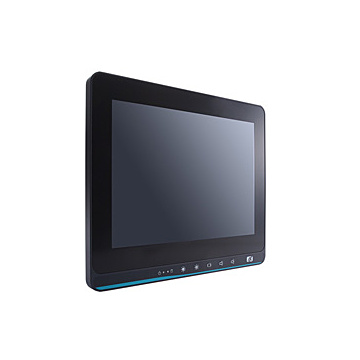

10.4" XGA TFT Fanless Touch Panel Computer with Intel® Celeron N3350, PoE PD
Ominaisuudet
* 10.4" XGA TFT LCD display with LED backlight
* Fanless design with Intel® Celeron® processor N3350
* 1 GbE LAN, 1 PoE PD, 4 USB and 2 COM
* IP65-rated front bezel and IPX1 rated back cover
* External AT/ATX mode selection switch
* Easy maintenance design for storage and memory
* Supports panel mount, wall mount, VESA arm and desktop stand
* Adjustable RS-232/422/485 setting via BIOS
* Aluminum cover for the better thermal dissipation and reliability
* Fanless design with Intel® Celeron® processor N3350
* 1 GbE LAN, 1 PoE PD, 4 USB and 2 COM
* IP65-rated front bezel and IPX1 rated back cover
* External AT/ATX mode selection switch
* Easy maintenance design for storage and memory
* Supports panel mount, wall mount, VESA arm and desktop stand
* Adjustable RS-232/422/485 setting via BIOS
* Aluminum cover for the better thermal dissipation and reliability
Spesifikaatiot
| System | |
| Processor | Intel® Celeron® processor N3350 |
| CPU Performance | |
| Security Hardware | |
| Chipset | SoC |
| Storage | 1 x SATA 1 x mSATA |
| Storage Support | |
| Memory | 1 x SO DIMM DDR3L 1600MHz up to 8 GB |
| Memory (RAM) | |
| Display | |
| Screen Size | 10.4" XGA TFT LCD |
| Screen Resolution | 1024x768 |
| Display Ratio | 4 ::3 |
| Contrast Ratio | |
| Brightness | 350nits |
| Viewing Angle | 160/160 |
| Number of Colors | |
| Touch Screen | |
| Touchscreen | Projected Capacitive (Multi-touch) |
| I/O Ports | |
| USB 2.0 | - |
| USB 3.0 | 4x USB 3.0 |
| Serial | 1x RS-232 1x RS-232/422/485 |
| Video | - |
| Ethernet | 1 x RJ45 GbE 1 x RJ45 PoE PD |
| Other Ports | |
| Operating System | |
| Operating System | Windows 10 |
| Power | |
| DC Input / Source Voltage | Power Device (PD): follows IEEE 802.3at (25.5W) |
| Power Management | |
| Expansion Slots | |
| 1 x M.2 Key E for wireless module 1 x Full-size PCI Express Mini Card slot | |
| Multimedia | |
| Integrated Speakers | - |
| Operating Temperature | |
| Operating Temperature | 0ºC to 50ºC |
| Humidity Range | 10% to 95% non-condensing |
| Cooling System / Thermal Solution | |
| Thermal Solution | Passive - Fanless |
| Dimensions / Weight | |
| Weight (kg) | 1,8 kg |
| Dimensions | 415 x 43,5 x 233mm |
| Enclosure | |
| Bezel | |
| Material | Plastic, Metal |
| Mounting | Panel , VESA |
| Note * | |
| Peripherals & Devices | |
| Accessories | |
| Extra Features | |
| Certification | |
| Certification | CE / FCC |
| Jäähdytys | Fanless |
|---|---|
| Näytön koko | 10.4" |
| Kosketusominaisuuden tyyppi | Projected Capasitive (PCAP) |
