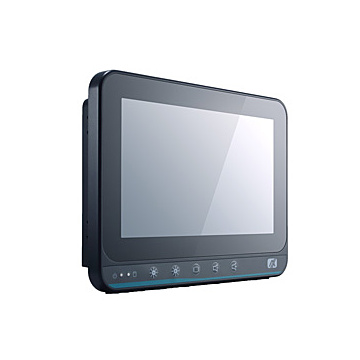

GOT107W-319

Ominaisuudet

* 7" WSVGA TFT LCD display with LED backlight
* Fanless design with Intel® Celeron® processor N3350
* 2 GbE LANs, 2 USB and 2 COM
* Plastic and IP65-rated front bezel
* External AT/ATX mode selection switch
* Easily accessible storage design
* Supports panel mount, wall mount, VESA arm and desktop stand

Spesifikaatiot

System
Processor	Intel® Celeron® processor N3350 up to 2.40 Ghz Intel® Pentium® Processor N4200 up to 2.5 Ghz
CPU Performance
Security Hardware
Chipset	SoC
Storage	1 x mSATA
Storage Support
Memory	1 x SO DIMM DDR3L 1600MHz up to 8 GB
Memory (RAM)
Display
Screen Size	7" TFT LCD
Screen Resolution	1024x600
Display Ratio	16 ::09
Contrast Ratio
Brightness	320 nits
Viewing Angle
Number of Colors
Touch Screen
Touchscreen	Projected Capacitive (Multi-touch)
I/O Ports
USB 2.0	-
USB 3.0	2x USB 3.0
Serial	1x RS-232 1x RS-232/422/485
Video	-
Ethernet	2 x RJ45 GbE
Other Ports
Operating System
Operating System	Windows 10
Power
DC Input / Source Voltage	9-24V DC 230V AC-DC Adapter
Power Management
Expansion Slots
	1 x M.2 Key E for wireless module 1 x Full-size PCI Express Mini Card slot
Multimedia
Integrated Speakers	-
Operating Temperature
Operating Temperature	0ºC to 50ºC
Humidity Range	10% to 95% non-condensing
Cooling System / Thermal Solution
Thermal Solution	Passive - Fanless
Dimensions / Weight
Weight (kg)	0,75 kg
Dimensions	192 x 37.4 x 145mm
Enclosure
Bezel
Material	Plastic
Mounting	Panel , VESA
Note *
Peripherals & Devices
Accessories
Extra Features
Certification
Certification	CE / FCC

Jäähdytys	Fanless
Näytön koko	7"
Kosketusominaisuuden tyyppi	Projected Capasitive (PCAP)
