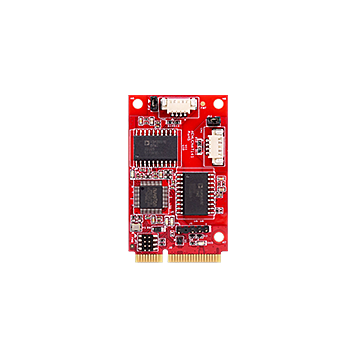

EMUC-B2S3-W1 Dual CANBUS2.0B, mPCIE

Tuotenro
EMUC-B2S3-W1
Toimitusaika 21-30pv

mPCIe to dual isolated CANbus 2.0B Module

  • Compliant with ISO 11898-2
  • Support baud rate 100/125/250/500(default)/800/1000K
  • Support CAN message acceptance filter, listen-only mode
  • Keep configuration after hardware reboot
  • Up to 7,800 frame/s (receiving at 1Mbps, EID, 8byte data)
  • Additional driver to support Linux SocketCAN
  • Support SAE J1939/CANopen high layer protocol (Optional)
  • Termination resistor enabled/disabled by jumper
  • Complies with EN61000-4-5 2.5kV Surge protection
  • Complies with IEC 60950-1:2005 + A1: 2009 + A2:2013 2.5kV HiPOT protection
  • Complaint with EN61000-4-2 (ESD) Air-15kV, Contact-8kV
  • Supports 3rd mounting hole and USB Pin header for out-ofminicard installation
  • 30μ” golden finger, 3-year warranty
  • Industrial Temperature (-40°C to +85°C) support
Lisätietoja
I/OCAN bus
Valmistaja / BrandInnodisk
ConnectionmPCIe
