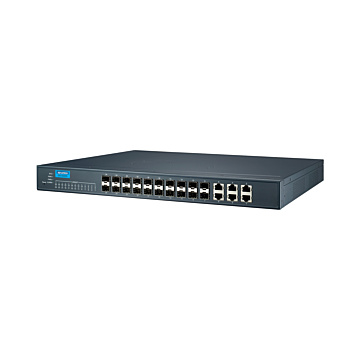

EKI-9226G-20FMI

Tuotenro

EKI-9226G-20FMI

Toimitusaika 21-30pv

IEC61850-3 20G SFP + 6GE Managed Ethernet Switch, 48DC

-40 ~ 85˚C wide-range operating temperature
Dual Power input and 2 relay output
Redundancy: Gigabit X-Ring Pro (ultra high-speed recovery time < 20 ms), RSTP/STP (802.1w/1D),MSTP
Security: 802.1x (Port-Based, MD5/TLS/TTLS/PEAP Encryption), HTTPS, SSH and SNMPv3
Management: SNMP v1/v2c/v3, WEB, Telnet, Standard MIB
SFP socket for Easy and Flexible Fiber Expansion
20 x Gigabit SFP ports + 6 x Gigabit x RJ-45 ports

Ethernet Communication
Port Number	26
RJ-45 Port Connector	6 x RJ-45
RJ-45 Transmission speed	10/100M/1000Mbps
RJ-45 Transmission Distance	100m
Fiber Port Number	20
Fiber Port Interface	SFP
Fiber Transmission Speed	Depends on fiber module
Fiber Transmission Distance	Depends on fiber module
Protocol support
Modbux TCP
Modbus RTU
PROFINET
Ethernet/IP	Yes
EtherCAT
OPC UA
BACnet
Ethernet	Yes
Certification
Ethernet Standard	IEEE 802.3, 802.3u, 802.3x, 802.3z, 802.1D, 802.1w,802.1p, 802.1Q, 802.1X, 802.3ad, 802.3ab
EMI	CE, FCC Class A
EMC	EN 61000-4-2 (Level 4), EN 61000-4-3 (Level 4), EN 61000-4-4 (Level 4), EN 61000-4-5 (Level 4), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 5), EN 61000-6-4
Shock	IEC 60068-2-27
Freefall	IEC 60068-2-32
Vibration	IEC 60068-2-6
Power
Power Input	48 VDC
Operating Current
Consumption	35W

PoE Information
PoE Port Number	-
PoE Output	-
PoE Budget	-
Switch Properties
MAC Table Size	8K
Packet Buffer Size	-
Switch Fabric Speed	-
Jumbo Frame	9 kb
Mechanical
Dimension	438 x 44 x 315.2mm
IP Rating	IP30
Enclosure	Metal
Weight
Mounting	1U 19” rack mount
Environment
Operating Temp	-40 ..85C
Storage Temp	-40 ..85C
Relative Humidity	10-95%
