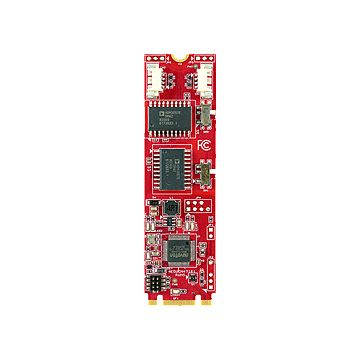

EGUC-F4S3 M.2 2280 to Four Isolated CAN FD Module
Tuotenro
EGUC-F4S3-W1
Toimitusaika 21-30pv
M.2 2280 to Four Isolated CAN FD Module
- Complies with IEC 60950-1 : 2005 + A1 : 2009 + A2 : 2013 2.5kV HiPOT protection
- Complaint with EN61000-4-2 (ESD) Air-15kV, Contact-8kV
- Termination resistor enabled / disabled by jumper
- Additional driver to support Linux SocketCAN
- Complies with IEC 60950-1 : 2005 + A1 : 2009 + A2 : 2013 2.5kV HiPOT protection
- Complaint with EN61000-4-2 (ESD) Air-15kV, Contact-8kV
- Termination resistor enabled / disabled by jumper
- Additional driver to support Linux SocketCAN
| Processor | |
| Interface | M.2 2280 B+M Key |
| Controller | - |
| Function | CAN FD |
| Input I/F | USB 2.0 High Speed (480Mbps) |
| Output Port | 2 |
| Output Connector | DB9 |
| CAN Communication | CAN FD |
| Vibration /Shock | 5G @ [7~2000Hz] 50G@0.5ms |
| Temperature | Operation : W/T -40°C ~ 85°C (Ta) Storage : -55°C ~ 95°C (Ta) |
| OS Supoort | Windows : 10 (32 / 64bit) and above version Linux : Kernel 2.6 and above (Native CDC-ACM driver), Kernel 2.6.38 and above (SocketCAN Driver), 32 / 64bit |
| PCB Dimension | 22x80x 12.65mm |
| Notes | *Data rate limitation : ● 2M supports normal rate 100k and above. ● 4M / 5M supports normal rate 250K and above. |
| Valmistaja / Brand | Innodisk |
|---|---|
| Connection | CAN bus |
| Data Interface | M.2 B-M Key |
