EGPC-B4S1-W1
Tuotenro
EGPC-B4S1-W1
Toimitusaika 14-22pv

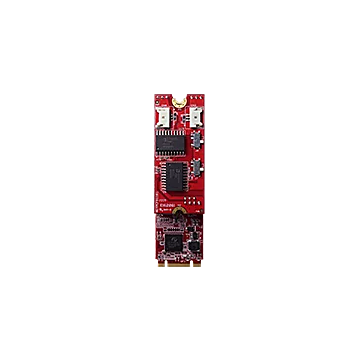

M.2 2280 to four isolated CANbus 2.0B module
- Compliant with PCI Express 1.1
- Meet the Requirements of the ISO 11898-1
- CAN bus 2.0B backward compatible with 2.0A
- Support baud rate 10/20/50/100/250/500/800/1000K
- Support CAN message acceptance filter
- Support Linux SocketCAN
- Support SAE J1939/CANopen high layer protocol (Optional)
- Compliant with IEC 60950-1:2005 + A1: 2009 + A2:2013 2.5kV HiPOT protection
- Compliant with EN61000-4-2 (ESD) Air-15kV, Contact-8kV
- Termination resistor enabled/disabled by switch
- 30μ” golden finger, 3-year warranty
- Industrial Temperature (-40°C to +85°C) support
| Form Factor | |
| Form Factor | M.2 2280 B-M |
| Module type | M.2 2280 to four isolated CANbus 2.0B module |
| System | |
| Funtion | CANbus |
| Input Interface | PCI Express 1.1 |
| Output Interface | CANbus 2.0B |
| Output connector | DB-9 x 4 |
| Dimensions | 22 x 80 x 12.9mm |
| Temperature | Operation: W/T temp: -40°C ~ +85°C Storage: -55°C ~ +95°C |
| Environment | Vibration: 5G @7~2000Hz Shock: 50G @ 0.5ms |
| I/O | CAN bus |
|---|---|
| Connection | M.2 |
