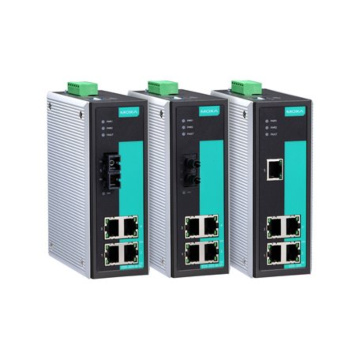

EDS-305
Tuotenro
EDS-305
Toimitusaika 14-22pv
5-port unmanaged Ethernet switches
- Relay output warning for power failure and port break alarm
- Broadcast storm protection
- 40 to 75°C operating temperature range (-T models)
| Ethernet Interface | |
| 10/100BaseT(X) Ports (RJ45 connector) | EDS-305/305-T: 5 EDS-305-M-SC/M-ST/S-SC Series, EDS-305-S-SC-80: 4 All models support: Auto negotiation speed Full/Half duplex mode Auto MDI/MDI-X connection |
| 100BaseFX Ports (multi-mode SC connector) | EDS-305-M-SC Series: 1 |
| 100BaseFX Ports (multi-mode ST connector) | EDS-305-M-ST Series: 1 |
| 100BaseFX Ports (single-mode SC connector) | EDS-305-S-SC: 1 EDS-305-S-SC-T: 1 |
| 100BaseFX Ports (single-mode SC connector, 80 km) | EDS-305-S-SC-80: 1 |
| Standards | IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3x for flow control |
| Switch Properties | |
| Processing Type | Store and Forward |
| MAC Table Size | 1K |
| Packet Buffer Size | 384 K |
| Max. No. Of VLANs | |
| Power Parameters | |
| Connection | 1 removable 6-contact terminal block |
| Input Current | EDS-305/305-T: 0.11 A @ 24 VDC EDS-305-M/S Series: 0.15 A @ 24 VDC |
| Input Voltage | 12/24/48 VDC Redundant dual inputs |
| Physical | |
| Dimensions | 53.6 x 135 x 105 mm |
| Installation | Din-rail mounting Wall mounting |
| Housing | Metal |
| Managed Eth | Un-Managed |
|---|---|
| Fiber Option | Multi-mode |
| PoE Option | None |
| Valmistaja / Brand | Moxa |
