eBOX710A-CML-PCIe

Muokkaa eBOX710A-CML-PCIe
eBOX710A-CML-PCIe

* Pakolliset kentät

Tuote
eBOX710A-CML-PCIe
eBOX710A-CML-PCIe

0,00 EUR

Yhteenveto
    Tuotenro
    eBOX710A-CML-PCIe
    Toimitusaika 21-30pv

    0,00 EUR

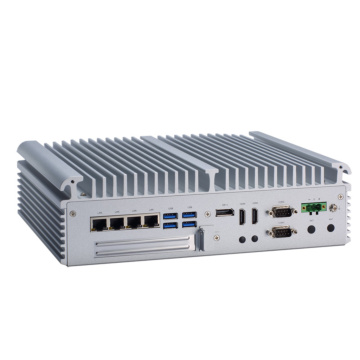

    Fanless Embedded System with LGA1200 Socket 11th/10th Gen Intel® Core™ i9/i7/i5/i3 or Celeron® Processor, Intel® H420E, HDMI, DisplayPort, 6 USB, 4 LAN, PCIe x4 slot, and 9 to 48 VDC

    • 10th/11th gen Intel® Core™ i9/i7/i5/i3 or Celeron® processor (Comet Lake-S) up to 65W
    • 4 GbE LAN and 4 COM ports
    • Dual 2.5" SATA HDD drive bays
    • 2 HDMI and 1 DisplayPort with dual view supported
    • -40 °C to +70 °C wide operating temperatures
    • Wide range power input from 9 to 48 VDC
    • 1 PCIe x4 slot for I/O card
    • Flexible I/O window slot for mPCIe modules
    System
    Processor LGA1200 socket 11th/10th gen Intel® Core™ i9/i7/i5/i3 or Celeron® processor (35W/65W)
    CPU Performance
    Security Hardware TPM2.0
    Chipset Intel® H420E
    Storage 2 x 2.5” SATA HDD/SSD (up to 15 mm height)
    2 x mSATA (enabled in BIOS setting)
    Storage Support
    Memory 2 x 260 pin DDR4-2933 non-ECC SO-DIMM, up to 64GB
    Audio
    Graphics
    I/O Ports
    USB 2.0 1 x USB2.0
    USB 3.0 5 x USB 3.2 Gen1
    Serial 2x RS-232
    2x RS-232/422/485
    Video 2 x HDMI 1.4b
    1 x DisplayPort 1.2++
    Ethernet 4 x 10/100/1000 Mbps Ethernet (3 x Intel® I210-IT, 1 x Intel® I219-LM)
    Other Ports TPM 2.0
    1 x AT/ATX quick switch
    1 x Remote switch
    Expansion
    Expansion Interface 2 x Full-size PCI Express Mini Card slot (USB + PCIe signal)
    1 x PCIe x4 slot
    2 x SIM slot
    Operating System
    Operating System Windows® 10, LINUX
    Win 11 IoT
    Power
    DC Input / Source Voltage 9-48VDC
    Operating Temperature
    Operating Temperature -40°C ~ +70°C (with Wide-Temp SSD, Memory)
    Humidity Range 10% ~ 90%, non-condensing
    Vibration IEC 60068-2-64 (w/ SSD: 3Grms STD, random, 5 - 500 Hz, 1 hr/axis)
    Shock IEC 60068-2-27 (w/ SSD: 50G, half-sine, 11 ms duration)
    Cooling System / Thermal Solution
    Thermal Solution
    Dimensions / Weight
    Weight (kg) 4.9 kg
    Dimensions 280 x 210 x 80,5 mm
    Enclosure
    Bezel
    Material Aluminum / Steel
    Mounting Desk / Wall mounting /DIN-rail
    Peripherals & Devices
    Accessories
    Extra Features
    Certification
    Certification CE
    Lisätietoja
    JäähdytysFanless
    CPU FamilyComet Lake (10th Gen Core i3/i5i7/i9)
    Operating TempWide Temp -40..70C
