eBOX710-521-FL

Muokkaa eBOX710-521-FL
eBOX710-521-FL-PCIE-DC

* Pakolliset kentät

Tuote
eBOX710-521-FL
eBOX710-521-FL

0,00 EUR

Yhteenveto
    Tuotenro
    eBOX710-521-FL
    Toimitusaika 21-30pv

    0,00 EUR

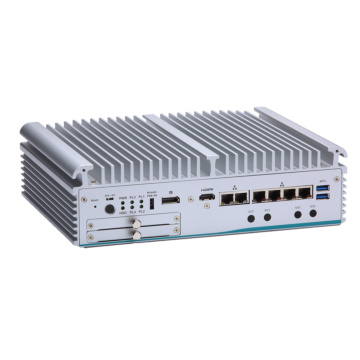

    Fanless Embedded System with LGA1151 Intel® Xeon®, 9th/8th Gen Intel® Core™ i7/i5/i3 or Celeron® Processor, Intel® C246, ECC/Non-ECC and 1 PCIex4 Expansion Slot

    • Intel® Xeon®, 9th/8th gen Intel® Core™ i7/i5/i3 or Celeron® processor
    • 2 DDR4 ECC/non-ECC memory supported, up to 64GB
    • Dual swappable 2.5" SATA HDD drive bays with RAID 0 &1
    • DVI-I, HDMI, and DisplayPort with triple-view supported
    • 6 GbE LAN, 6 USB 3.1 and 1 PCIe x4 slot
    • Flexible I/O window supported
    System
    Processor LGA1151 Intel® Xeon®, 9th/8th gen Intel® Core™ i7/i5/i3 or Celeron® processor
    CPU Performance
    Security Hardware
    Chipset Intel C246
    Storage 2 x 2.5" HDD drive bay (max. up 9.5 mm height)
    1 x mSATA (enabled in BIOS setting)
    Storage Support
    Memory 2 x 260-pin DDR4-2666 non-ECC SO-DIMM, up to 64GB
    Audio
    Graphics
    I/O Ports
    USB 2.0 -
    USB 3.0 4 x USB 3.2 Gen2
    2 x USB 3.2 Gen1
    Serial 2x RS-232/422/485
    Video 1 x HDMI
    1 x DisplayPort
    1 x DVI-I
    Ethernet 6 x 10/100/1000 Mbps Ethernet (5 x i210-IT & i219-LM)
    Other Ports 4x Antenna opening
    Expansion
    Expansion Interface 2 x Full-size PCI Express Mini Card slot (USB + PCIe signal)
    1 x PCIe x4 slot
    2 x SIM slot
    Operating System
    Operating System Windows® 10, LINUX
    Power
    DC Input / Source Voltage 24VDC
    Operating Temperature
    Operating Temperature -40°C ~ +70°C (with Wide-Temp SSD, Memory)
    Humidity Range 10% ~ 90%, non-condensing
    Vibration IEC 60068-2-64 (w/ SSD: 3Grms STD, random, 5 - 500 Hz, 1 hr/axis)
    Shock IEC 60068-2-27 (w/ SSD: 50G@wall mount, half-sine, 11 ms duration)
    Cooling System / Thermal Solution
    Thermal Solution
    Dimensions / Weight
    Weight (kg) 4.8 kg
    Dimensions 280 x 210 x 80,5 mm
    Enclosure
    Bezel
    Material Aluminum / Steel
    Mounting Desk / Wall mounting /DIN-rail
    Peripherals & Devices
    Accessories
    Extra Features
    Certification
    Certification CE
    Lisätietoja
    JäähdytysFanless
    CPU FamilyCoffee Lake (8th Gen Core i3/i5/i7)
