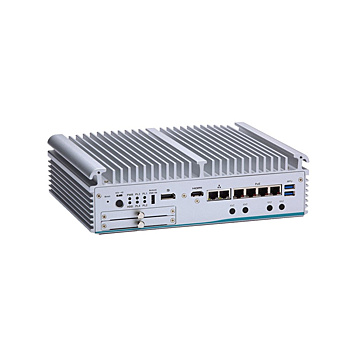

eBOX671-521-FL-DC

Ominaisuudet

* 8th gen Intel® Core™ i7/i5/i3 & Celeron® with Intel® Q370 chipset (Coffee Lake-S)
* 4-CH GbE PoE (IEEE802.3at)
* Dual swappable 2.5" SATA HDD drive bay
* Supports MXM graphics module (optional)
* DVI-I, HDMI, and DisplayPort with triple-view supported

Spesifikaatiot

System
Processor	LGA1151 8th gen Intel® Core™ i7/i5/i3 & Celeron® processors (35W/65W)
CPU Performance
Security Hardware
Chipset	Intel® Q370
Storage	2 x 2.5" HDD drive bay 1 x mSATA
Storage Support
Memory	2 x 260-pin DDR4-2666 SO-DIMM, up to 32GB
Memory (RAM)
I/O Ports
USB 2.0	-
USB 3.1	4x USB 3.1 Gen2 2x USB 3.1 Gen1
Serial	2x RS-232/422/485
Display	2 x DisplayPort via MXM module (optional) 1 x HDMI 1 x DP 1 x DVI-I
Ethernet	2 x 10/100/1000 Mbps 4 x Gigabit PoE (IEEE 802.3at) port (max. up to 60W)
Other Ports
Operating System
Operating System	Windows 10 Pro, Windows 10 IoT, Linux
Power
DC Input / Source Voltage	24V DC
Power Management
Expansion Slots
Expansion	2 x Full-size PCI Express Mini Card slot (USB + PCIe signal) 2 x SIM slot

Operating Temperature
Operating Temperature	-20°C to 60°C (with W.T. DRAM & SSD, CPU TDP 35W) -20°C to 50°C (with W.T. DRAM & SSD, CPU TDP 65W)
Humidity Range	10% to 95% non-condensing
Cooling System / Thermal Solution
Thermal Solution	Passive - Fanless
Dimensions / Weight
Weight (kg)	4.8 kg
Dimensions	280 x 210 x 80.5 mm
Enclosure
Bezel
Material	Aluminum/ Plastic
Mounting	Wall mount kit, DIN-rail kit
Vibration	IEC 60068-2-64 (w/SSD: 3Grms STD, random, 5 - 500 Hz, 1 hr/axis)
Peripherals & Devices
Accessories
Extra Features
Certification
Certification	CE / FCC
