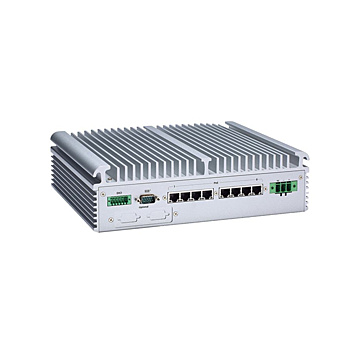

eBOX671-517-FL-DC

Ominaisuudet

* 7th/6th gen Intel® Core™ i7/i5/i3 & Celeron® processors (35W/65W) and Intel® Q170
* 8-CH PoE/GbE onboard
* 2 front-access SIM slots
* Supports 6-in/2-out isolated DIO
* -40°C to +70°C extended operating temperature
* Optional ignition feature supported

Spesifikaatiot

System
Processor	LGA1151 socket 7th/6th gen Intel® Core™ i7/i5/i3 & Celeron® processors (35W/65W)
CPU Performance
Security Hardware
Chipset	Intel® Q170
Storage	2 x 2.5" HDD drive bay 1 x mSATA
Storage Support
Memory	2 x 260-pin DDR4-2666 SO-DIMM, up to 32GB
Memory (RAM)
I/O Ports
USB 2.0	2 x USB2.0
USB 3.0	4x USB 3.0
Serial	2x RS-232/422/485
Display	1 x HDMI 1.4b 1 x VGA 1 x DVI-D
Ethernet	8 x Gigabit PoE (IEEE 802.3at) port (Intel® i211-AT, max. up to 90W)
Other Ports	Line-out & MIC-in 1 x 6-in/2-out isolated DIO
Operating System
Operating System	Windows 10 Pro, Windows 10 IoT, Linux
Power
DC Input / Source Voltage	24V DC
Power Management
Expansion Slots
Expansion	2 x Full-size PCI Express Mini Card slot (USB + PCIe + SIM) 1 x Half-size PCI Express Mini Card slot (USB only) 1 x Half-size PCI Express Mini Card slot (USB + PCIe + mSATA)

Operating Temperature
Operating Temperature	-40°C to 70°C (with W.T. DRAM & SSD, CPU TDP 35W) -40°C to 55°C (with W.T. DRAM & SSD, CPU TDP 65W)
Humidity Range	10% to 95% non-condensing
Cooling System / Thermal Solution
Thermal Solution	Passive - Fanless
Dimensions / Weight
Weight (kg)	4.4 kg
Dimensions	280 x 210 x 80.0 mm
Enclosure
Bezel
Material	Aluminum/
Mounting	Wall mount kit, DIN-rail kit
Vibration
Peripherals & Devices
Accessories
Extra Features
Certification
Certification	CE / FCC
