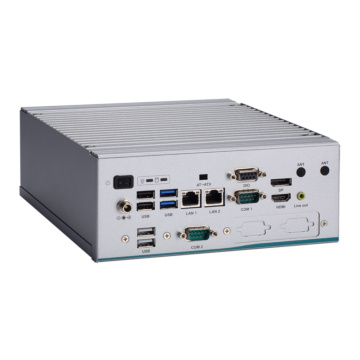

eBOX640-521-FL
Tuotenro
eBOX640-521-FL
Toimitusaika 21-30pv
0,00 EUR
Fanless Embedded System with LGA1151 Socket 8th Gen Intel® Core™ & Celeron® Processor, Intel® H310, HDMI, DisplayPort, 6 USB, 2 COM and 8-CH DI/DO
- LGA1151 socket 9th/8th gen Intel® Core™ i7/i5/i3 or Celeron® processor (Coffee Lake)
- Supports 2 COM, 6 USB, and 8-CH DI/DO
- Two 2.5" SATA drive bay
- M.2 Key E 2230 for Wi-Fi
- Front I/O connectivity design
- Supports flexible I/O window
| System | |
| Processor | 8th gen Intel® Core™ i7/i5/i3 processor |
| CPU Performance | Intel® Core™ i7-8700T Hexa Core processor 2.4GHz 12MB
Cache, TDP 35W Intel® Core™ i5-8500T Hexa Core processor 2.4GHz 12MB Cache, TDP 35W Intel® Core™ i3-8100T Hexa Core processor 2.1GHz 9MB Cache, TDP 35W |
| Security Hardware | |
| Chipset | Intel H310 |
| Storage | 2 x 2.5” SATA HDD drive bay (max. up 9.5 mm height) |
| Storage Support | |
| Memory | 2 x DDR4-2400 SO-DIMM, up to 32GB |
| Audio | |
| Graphics | |
| I/O Ports | |
| USB 2.0 | 4x USB2.0 |
| USB 3.0 | 2x USB 3.0 |
| Serial | 1 x RS-232/422/485 1x RS-232 |
| Video | 1 x DisplayPort 1 x HDMI |
| Ethernet | 2 x 10/100/1000Mbps (Intel® i219V-LM, i211-AT) |
| Other Ports | Line-out 1 x 8-CH DIO (4-in/4-out) 4x Antenna opening |
| Expansion | |
| Expansion Interface | 1 x Full-size PCI-Express Mini Card slot (PCIe + SATA
+ USB) 1 x M.2 Key E 2230 (for Wi-Fi) |
| Operating System | |
| Operating System | Windows® 10, LINUX |
| Power | |
| DC Input / Source Voltage | 12VDC 230V AC-DC adapter |
| Operating Temperature | |
| Operating Temperature | -10°C ~ +50°C , With Wide-Temp SSD |
| Humidity Range | 10% ~ 95%, non-condensing |
| Cooling System / Thermal Solution | |
| Thermal Solution | |
| Dimensions / Weight | |
| Weight (kg) | 3.0 kg |
| Dimensions | 195 x 210 x 80 mm |
| Enclosure | |
| Bezel | |
| Material | Aluminum / Steel |
| Mounting | Desk / Wall mounting DIN-rail kit |
| Peripherals & Devices | |
| Accessories | |
| Extra Features | |
| Certification | |
| Certification | CE |
| Jäähdytys | Fanless |
|---|---|
| CPU Family | Coffee Lake (8th Gen Core i3/i5/i7) |
