EBOX630A

Muokkaa EBOX630A

* Pakolliset kentät

Tuote
EBOX630A
EBOX630A

0,00 EUR

Yhteenveto
    Tuotenro
    EBOX630A-xxx
    Toimitusaika 21-30pv

    0,00 EUR

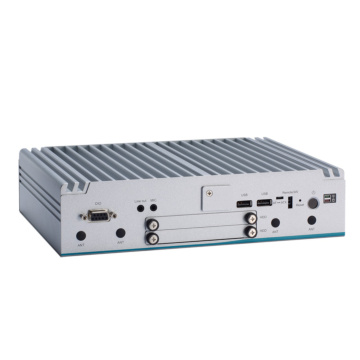

    Fanless Embedded System with 11th Gen Intel® Core™ i7/i5/i3 or Celeron® Processor, 2 HDMI, 1 DisplayPort, 3 LANs, 6 USB, 4 COM, and 9 to 48 VDC

    • 11th gen Intel® Core™ i7/i5/i3 or Celeron® Quad-core ULT processor (Tiger Lake UP3)
    • Dual-channel DDR4-3200 SO-DIMM for up to 64GB of memory
    • Supports 3x 2.5 GbE, 6 USB, 4 COM
    • -40°C to +60°C wide operating temperatures
    • 9 to 48 VDC wide range DC power input
    • Supports triple displays with 2 HDMI, and 1 DisplayPort++
    • Intel® Iris® Xe integrated graphics (i7 & i5 SKUs)
    • Trusted platform module (TPM 2.0 onboard)


    System
    Processor 11th gen Intel® Core™ i7/i5/i3 & Celeron® processor
    CPU Performance Intel® Core™ i7-1185G7E
    Intel® Core™ i5-1145G7E
    Intel® Core™ i3-1115G4E
    Intel® Celeron® 6305E
    (TDP up to 15W)
    Security Hardware TPM2.0
    Chipset SoC
    Storage 2 x 2.5” swappable SSD/HDD drive bay
    RAID 0,1 supported
    1 x M.2 Key M 2280 (PCIe x 4 only)
    Memory 2 x 260-pin DDR4-3200 SO-DIMM, up to 64GB
    Audio
    Graphics 2 x HDMI 1.4b
    1 x DisplayPort++ 1.4a
    I/O Ports
    USB 2.0 2 x USB2.0
    USB 3.0 4x USB 3.2 Gen1
    Serial 2 x RS-232/422/485
    2 x RS-232
    Video 2 x HDMI 1.4b
    1 x DisplayPort++ 1.4a
    Ethernet 2 x 10/100/2500 Mbps Ethernet (Intel® i226-IT)
    1 x 10/100/2500 Mbps Ethernet (Intel® i226-LM)
    Other Ports 1 x 8-CH TTL DIO via DB9 female (4-in/4-out)
    Expansion
    Expansion Interface 1 x Full-size PCI Express Mini Card (USB + PCIe signal)
    1 x M.2 Key E 2230 (for WiFi)
    1 x Front-access SIM slot
    Operating System
    Operating System Win 10 IoT, Win 11 IoT, Linux
    Power
    DC Input / Source Voltage 9 to 48V DC
    Operating Temperature
    Operating Temperature -40°C to +60°C with 0.5 m/s air flow
    (with W.T. DRAM & SSD,CPU TDP 15W)
    Humidity Range 10% ~ 95%, non-condensing
    Vibration & Shock
    Vibration IEC 60068-2-64 (with SSD: 3Grms STD, random, 5 to 500 Hz, 1 hr/axis)
    Shock IEC 60068-2-27 (with SSD: 50G, half sine, 11 ms duration)
    Dimensions / Weight
    Weight (kg) 2.4 kg
    Dimensions 250 x 170 x 60 mm
    Enclosure
    Bezel
    Material Aluminum / Steel
    Mounting Desk / Wall mounting / DIN-RAIL
    Peripherals & Devices
    Accessories Optional Modules
    Extra Features
    Certification
    Certification CE
    Lisätietoja
    JäähdytysFanless
    CPU FamilyTiger Lake (11th Gen Core i3/i5/7) Mobile
    Operating TempWide Temp -40..60C
