eBOX570
Tuotenro
eBOX570-x
Toimitusaika 14-22pv
0,00 EUR

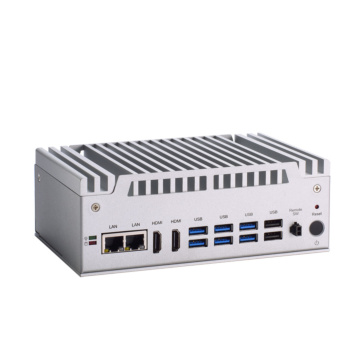

Fanless Embedded System with 13th Gen Intel® Core™ i7/i5/Celeron® Processor, 2 HDMI, 2 LANs, 8 USB, 2 COM, and 12 VDC
- 13th gen Intel® Core™ processor (Raptor Lake P)
- Fanless design with operating temperature from -20°C to 60°C
- 1 DDR4 SO-DIMM for up to 32GB of memory
- Intelligent power ignition management and USB power on/off control
- Supports high-speed NVMe storage (M.2 Key M 2280)
- Excellent heat-dissipation DIN-rail system
- Supports Intel® vPro and TPM 2.0
| System | |
| Processor | Intel® Core™ i7-1365UE Intel® Core™ i5-1335UE Intel®Celeron® U300E (TDP up to 15W) |
| Security Hardware | TPM2.0 |
| Chipset | SoC |
| Storage | 1 x M.2 Key M 2280 socket (for NVMe storage with PCIe x4 Gen3 or SATA signal, selectable through the BIOS) |
| Memory | 1 x 260-pin DDR4-3200 SO-DIMM, up to 32GB |
| Audio | na |
| Graphics | - |
| I/O Ports | |
| USB 2.0 | 2 x USB2.0 |
| USB 3.0 | 4 x USB 3.2 Gen2x1 (10G) type A 2 x USB 3.2 Gen1x1 (5G) type A |
| Serial | 2 x RS-232/422/485 |
| Video | 2 x Lockable HDMI 1.4b @30Hz with 4096 x 2160 resolution |
| Ethernet | 1 x 10/100/1000 Mbps (Intel® I210-IT) 1 x 10/100/1000 Mbps (Intel® I219-LM, supporting Intel® AMT) |
| Other Ports | 1 x Power button 1 x Reset switch connector 1 x Remote switch 2 x Antenna Opening |
| Expansion | |
| Expansion Interface | 1 x Full-size PCI Express Mini Card with SIM slot 1 x M.2 Key E 2230 slot (for Wi-Fi) |
| Operating System | |
| Operating System | Windows® 10, Windows 11, LINUX |
| Power | |
| DC Input / Source Voltage | 12VDC |
| Operating Temperature | |
| Operating Temperature | -40°C to +70°C(with W.T. DRAM & SSD, CPU TDP 15W |
| Humidity Range | 10% ~ 90%, non-condensing |
| Cooling System / Thermal Solution | |
| Thermal Solution | |
| Dimensions / Weight | |
| Weight (kg) | 2.5 kg |
| Dimensions | 120 x 178 x 65 mm |
| Enclosure | |
| Material | Aluminum / Steel |
| Mounting | Desk / Wall mounting /DIN-Rail |
| Peripherals & Devices | |
| Accessories | |
| Extra Features | |
| Certification | |
| Certification | CE (EN 61000-6-4/EN 61000-6-2), FCC Class A, UKCA |
| Valmistaja / Brand | Axiomtek |
|---|---|
| Jäähdytys | Fanless |
| CPU Family | Alder Lake (12th Gen Core i3/i5i7/i9) |
| Operating Temp | Wide Temp -40..70C |
