eBOX100A
Tuotenro
eBOX100A
Toimitusaika 14-22pv
0,00 EUR

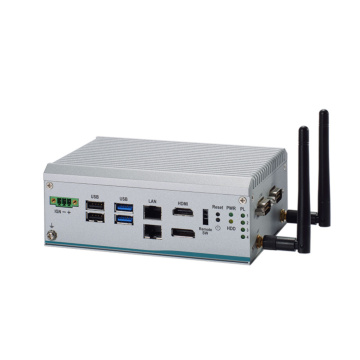

Fanless Embedded System with Intel® Alder Lake-N Processor, 2 LAN/4 LAN, HDMI, DisplayPort++, 2 COM, 4 USB, and 9 to 36 VDC
- Intel® processor N97 quad-core SoC (Alder Lake-N)
- 1 DDR4 SO-DIMM, up to 32GB
- Operating temperature ranges from -20°C to +60°C
- Supports either two or four 2.5GbE versions
- 4 USB with a power on/off feature and 2 COM
- Supports HDMI (FHD) and DisplayPort++ for dual-view
- Front-access I/O design
| System | |
| Processor | Intel® processor N97 (Alder Lake-N) (up to 3.6GHz, 12W) |
| Chipset | SoC |
| Storage | 1 x M.2 2280 slot (NVME) 1 x 2.5” HDD/SDD bay |
| Security | TPM2.0 |
| Memory | 1 x 262-pin DDR5-4800 SO-DIMM, up to 32GB |
| I/O Ports | |
| USB 2.0 | 2x USB 2.0 |
| USB 3.0 | 3x USB 3.2 Gen1 |
| Serial | 2 x RS-232/422/485 (terminal block) |
| Video | 1x HDMI (FHD) 1x DP(++ |
| Ethernet | 2 x 2.5G Ethernet LAN, RJ-45 (Intel i226-V) 4 x 2.5G Ethernet LAN, RJ-45 (Intel i226-V) (optional) |
| Other Ports | - |
| Operating System | |
| Operating System | Windows 11 IoT, Linux |
| Power | |
| Source Voltage | 9-36V DC Input 230V AC adapter (Optional) |
| Power Management | |
| Expansion Slots | |
| Expansion | 1 x Full-size PCI Express Mini Card slot (USB 2.0 + PCIe + SIM signal) 1 x M.2 Key M 2280 socket (for storage) (PCIe x2 signal) 1 x M.2 Key E 2230 socket (for Wi-Fi 6E) (USB 2.0 signal) 1 x Internal SIM slot for PCIe Mini Card slot |
| Mounting | |
| Wall mount kit DIN-rail kit VESA mount kit |
|
| Operating Temperature | |
| Operating Temperature | 20ºC to 60ºC with wide-temp ssd/ram |
| Humidity Range | 10% to 90% non-condensing |
| Cooling System / Thermal Solution | |
| Thermal Solution | Fanless |
| Dimensions / Weight | |
| Weight (kg) | 1.5 kg |
| Dimensions | 155 x 110 x60mm |
| Certification | |
| Certification | CE / FCC |
| Valmistaja / Brand | Axiomtek |
|---|---|
| Jäähdytys | Fanless |
| CPU Family | Alder Lake (12th Gen Atom X/Intel N) |
