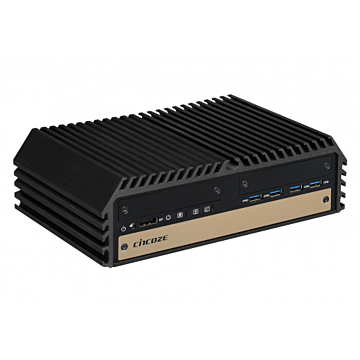

DX-1000

Muokkaa DX-1000
DX-1000

* Pakolliset kentät

Tuote
DX-1000
DX-1000

0,00 EUR

Yhteenveto
    Tuotenro
    DX-1000
    Toimitusaika 21-30pv

    0,00 EUR

    • Supports 7/6th Generation Intel® Xeon® / Core™ LGA1151 Socket Type Processors
    • Intel® C236 Chipset
    • 2x DDR4-2133/2400 SO-DIMM Sockets, up to 64GB Memory
    • Triple Independent Display (1x DVI-I, 2x DisplayPort)
    • 2x 2.5" Hot Swap SATA III HDD/SSD bays, Supports RAID 0/1
    • 3x CMI Interfaces for RJ45/M12 GbE LAN, COM & DIO Expansions
    • 2x CFM Interfaces for Power Ignition Sensing and PoE Functions
    • 4x Full-size Mini-PCIe Slots for Wireless & I/O Expansions
    • EN50121-3-2 Certified for Railway Application
    • E-Mark (E13) Certification for In-vehicle Application
    System
    Processor 6th gen Intel® Core™ / Xeon , 35 ~ 80W
    CPU Performance
    Security Hardware
    Chipset Intel® C236 Chipset
    Storage 2x SATA III (6Gbps) for 2.5” HDD/SSD
    4x mSATA Socket ( SATA 3.0, shared by Mini-PCIe socket )
    Support RAID 0/1/5/10
    Storage Support
    Memory 2x DDR4-2133/2400MHz SO-DIMM Sockets, Support up to 64 GB (Un-buffered and Non-ECC type)
    Graphics Integrated Intel® HD Graphics
    Three Independent Display (1x DVI-I, 2x DisplayPort)
    I/O Ports
    USB 2.0 -
    USB 3.0 8x USB 3.0
    Serial 4x RS-232/422/485
    Video 1 x DVI-I
    2 x DisplayPort
    Ethernet 2x 10/100/1000 Mbps, RJ45
    GbE1: Intel I219-LM
    GbE2: Intel I210
    Other Ports Mic-in/Line-out
    1x Remote Power On/Off Connector
    1x Remote Reset Connector
    Expansion
    Expansion Interface 1x CFM Interface (Control Function Module)
    3x CMI (Combined Multiple I/O) Interface
    4x Full-size Mini-PCIe Sockets
    1x SIM Socket
    Operating System
    Operating System Windows® 7 / Windows® 10
    Power
    DC Input / Source Voltage Power Input Voltage 9~48VDC
    Operating Temperature
    Operating Temperature -40°C ~ +70°C with W.T. SSD, 35W TDP CPU
    -40°C ~ +55°C with W.T. SSD, 65W TDP CPU
    Humidity Range 10% ~ 95%, non-condensing
    Cooling System / Thermal Solution
    Thermal Solution Passive - Fanless
    Dimensions / Weight
    Weight (kg) 3.6 kg
    Dimensions 242 x 174 x 77 mm
    Enclosure
    Bezel
    Material Aluminum / Steel
    Mounting Desk / Wall mounting
    Environment
    Relative Humidity 40°C @ 95% RH (non-Condensing)
    Shock Operating, 50 Grms, Half-sine 11 ms Duration
    (w/ SSD, according to IEC60068-2-27)
    Vibration Operating, 5 Grms, 5-500 Hz, 3 Axes
    (w/ SSD, according to IEC60068-2-64)
    Certification
    Certification CE, FCC Class A, EN50121-3-2, E-Mark (E13, No.10R-0514546)
    Lisätietoja
    JäähdytysFanless
    CPU FamilySkylake (6th Gen Core i3/i5i7)
    Operating TempWide Temp -40..70C
