SCD2364-C
Tuotenro
SCD2364-CNN-Q11
Toimitusaika 21-30pv

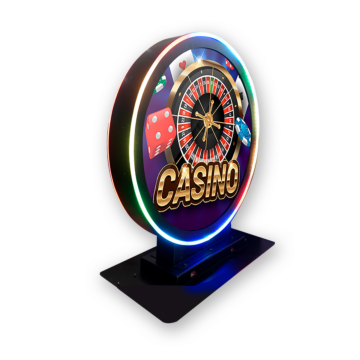

23.6” TFT LCD, 700nits LED Backlight, 848 x 848, Double Side Circle Display
- 23.6" Double side Circle Display
- High Brightness 700nits
- Aspect ratio 1:1
- Double Side RGB Circle Lighting
- MTBF: 50,000 hours
| Display | |
| Screen Size | 23.6" TFT LCD x2 |
| Screen Resolution | 848x848 |
| Display Ratio | 1 ::1 |
| Contrast Ratio | 6200 ::1 |
| Brightness | 700 nits |
| Viewing Angle | 178°(H),178°(V) |
| Number of Colors | 16.7M |
| Touch Screen | |
| Touchscreen | PCAP |
| I/O Ports | |
| Video |
2x HDMI |
| Other Ports | USB Touch |
| Operating System | |
| Operating System | |
| Power | |
| DC Input / Source Voltage | 230V AC |
| Multimedia | |
| Operating Temperature | |
| Operating Temperature | 0ºC to 50ºC |
| Humidity Range | 10% to 95% non-condensing |
| Cooling System / Thermal Solution | |
| Thermal Solution | Passive - Fanless |
| Dimensions / Weight | |
| Weight (kg) | 22.5 kg |
| Dimensions | 695 x 730 x 100mm |
| Enclosure | |
| Bezel size |
|
| Material | |
| Mounting | VESA 280x140 , 400x400 |
| Protection | IP65 Front |
| Peripherals & Devices | |
| Accessories | |
| Extra Features | |
| Certification | |
| Certification | CE / FCC |
| Näytön koko | 24" |
|---|---|
| Näytön signaali (input) | HDMI, Display Port |
