DSP600-211
Tuotenro
DSP600-211-V1807B
Toimitusaika 21-30pv
0,00 EUR

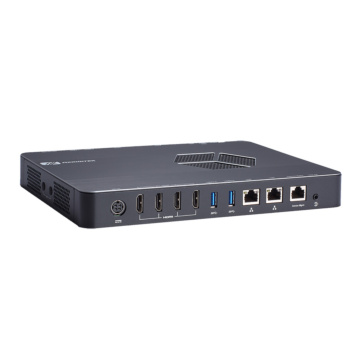

4K Digital Signage Player with AMD Ryzen™ Embedded V1000 Series, 4 HDMI, 2 GbE LAN and 4 USB
| System | |
| Processor | AMD Ryzen™ Embedded Quad Core V1807B |
| CPU Performance | |
| Security Hardware | |
| Chipset | SoC |
| Storage | 1 x M.2 Key M 2280 (SATA) 1 x M.2 Key M 2280 (NVMe) |
| Storage Support | |
| Memory | 2 x DDR4-2400 SO-DIMM, up to 16GB |
| Audio | |
| Graphics | 4 x HDMI 2.0 (4K supported) |
| I/O Ports | |
| USB 2.0 | 2 x USB2.0 |
| USB 3.0 | 2x USB 3.1 |
| Serial | 2x RS-232 |
| Video | 4 x HDMI 2.0 (4K supported) |
| Ethernet | 2x GbE LAN , RJ-45 Optional Mec-Lan Module: - 2x RJ45 GbE LAN Module |
| Other Ports | Line-out 1x Remote Power On/Off Connector 4x Antenna opening |
| Expansion | |
| Expansion Interface | 1 x M.2 Key E for Wi-Fi/BT 1 x M.2 Key B for 4G/LTE 1 x SIM card slot |
| Operating System | |
| Operating System | Windows® 10, LINUX |
| Power | |
| DC Input / Source Voltage | 12VDC |
| Operating Temperature | |
| Operating Temperature | 0°C ~ +40°C |
| Humidity Range | 10% ~ 95%, non-condensing |
| Cooling System / Thermal Solution | |
| Thermal Solution | |
| Dimensions / Weight | |
| Weight (kg) | 1.9 kg |
| Dimensions | 250 x 182 x 30 mm |
| Enclosure | |
| Bezel | |
| Material | Aluminum / Steel |
| Mounting | Desk / Wall mounting |
| Peripherals & Devices | |
| Accessories | Optional Modules |
| Extra Features | |
| Certification | |
| Certification | CE |
| Jäähdytys | CPU tuuletin |
|---|
